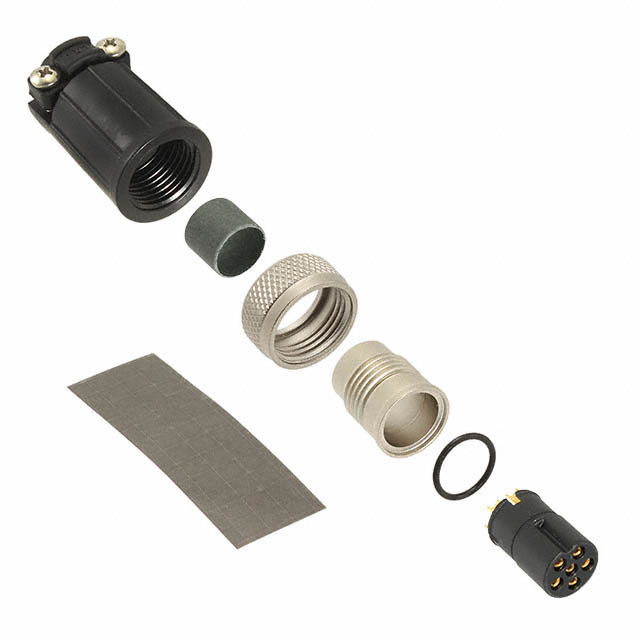

SF6382-6SG-520
ActiveConxall/Switchcraft
CONN PLUG FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF6382-6SG-520
ActiveConxall/Switchcraft
CONN PLUG FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF6382-6SG-520 |
|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA), Glass Filled |
| Color | Black, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Ingress Protection | IP66/IP68 |
| Insert Material | Polyester Resin |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shielding | Shielded |
SF6382 Series
| Part | Insert Material | Contact Material | Shielding | Contact Finish - Mating | Ingress Protection | Orientation | Shell Material | Mounting Type | Color | Shell Finish | Features | Backshell Material, Plating | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft | Polyester Resin | Copper Alloy | Shielded | Gold | IP66/IP68 | Keyed | Copper Alloy | Free Hanging (In-Line) | Black Silver | Nickel | Backshell Cable Clamp Coupling Nut | Glass Filled Nylon Polyamide (PA) | -40 °C | 120 °C | Metal | Male Pins Plug | |
Conxall/Switchcraft | Polyester Resin | Copper Alloy | Shielded | Gold | IP66/IP68 | Keyed | Copper Alloy | Free Hanging (In-Line) | Black Silver | Nickel | Backshell Cable Clamp Coupling Nut | Glass Filled Nylon Polyamide (PA) | -40 °C | 120 °C | Metal | Female Sockets Plug | |
Conxall/Switchcraft | Polyester Resin | Copper Alloy | Shielded | Gold | IP66/IP68 | Keyed | Copper Alloy | Free Hanging (In-Line) | Black Silver | Nickel | Backshell Cable Clamp Coupling Nut | Glass Filled Nylon Polyamide (PA) | -40 °C | 120 °C | Metal | Male Pins Plug | 6 |
Conxall/Switchcraft | Polyester Resin | Copper Alloy | Shielded | Gold | IP66/IP68 | Keyed | Copper Alloy | Free Hanging (In-Line) | Black Silver | Nickel | Backshell Cable Clamp Coupling Nut | Glass Filled Nylon Polyamide (PA) | -40 °C | 120 °C | Metal | Male Pins Plug | |
Conxall/Switchcraft | Polyester Resin | Copper Alloy | Shielded | Gold | IP66/IP68 | Keyed | Copper Alloy | Free Hanging (In-Line) | Black Silver | Nickel | Backshell Cable Clamp Coupling Nut | Glass Filled Nylon Polyamide (PA) | -40 °C | 120 °C | Metal | Male Pins Plug | 2 |
Conxall/Switchcraft | Polyester Resin | Copper Alloy | Shielded | Gold | IP66/IP68 | Keyed | Copper Alloy | Free Hanging (In-Line) | Black Silver | Nickel | Backshell Cable Clamp Coupling Nut | Glass Filled Nylon Polyamide (PA) | -40 °C | 120 °C | Metal | Female Sockets Plug | 6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.05 | |
| 10 | $ 43.39 | |||
| 25 | $ 40.67 | |||
| 50 | $ 38.73 | |||
| 100 | $ 36.88 | |||
| 250 | $ 34.89 | |||
Description
General part information
SF6382 Series
6 Position Circular Connector Plug, Female Sockets Solder Cup
