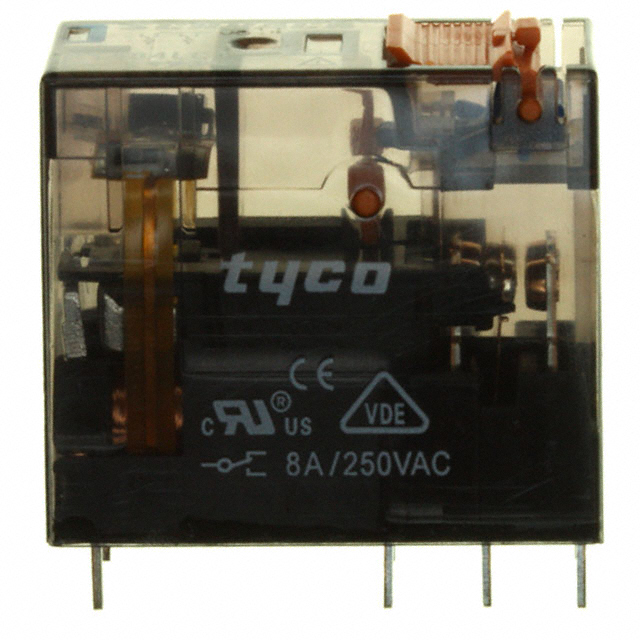

XT484LC4

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 8A 24V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 8A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Switching Voltage [Max]	Termination Style	Release Time	Features	Coil Resistance	Operate Time	Must Operate Voltage	Mounting Type	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Coil Type	Must Release Voltage	Contact Form	Load - Max Switching	Coil Voltage	Coil Current	Contact Rating (Current)	Approval Agency	Coil Insulation
TE Connectivity Potter & Brumfield Relays XT484R24	400 VAC	Plug In	6 ms	Lighted Indicator	350 Ohms	9 ms	18 VAC	Socketable	General Purpose	-40 °C	70 °C	Silver Nickel (AgNi)	Non Latching	3.6 VAC	DPDT (2 Form C)	3200 VA	24 VAC	16.7 mA	8 A	cURus VDE
TE Connectivity Potter & Brumfield Relays XT484S15	400 VAC	Plug In	6 ms	Lighted Indicator	8.1 kOhms	9 ms	86.3 VAC	Socketable	General Purpose	-40 °C	70 °C	Silver Nickel (AgNi)	Non Latching	17.3 VAC	DPDT (2 Form C)	3200 VA	115 VAC	16.7 mA	8 A	cURus VDE
TE Connectivity Potter & Brumfield Relays XT484LC4	400 VAC	Plug In	6 ms	Diode Lighted Indicator	1440 Ohms	9 ms	16.8 VDC	Socketable	General Purpose	-40 °C	70 °C	Silver Nickel (AgNi)	Non Latching	2.4 VDC	DPDT (2 Form C)	3200 VA	24 VDC	16.7 mA	8 A	cURus VDE
TE Connectivity Potter & Brumfield Relays XT484LB2	400 VAC	Plug In	6 ms	Diode Lighted Indicator	360 Ohms	9 ms	8.4 VDC	Socketable	General Purpose	-40 °C	70 °C	Silver Nickel (AgNi)	Non Latching	1.2 VDC	DPDT (2 Form C)	3200 VA	12 VDC	16.7 mA	8 A	cURus VDE
TE Connectivity Potter & Brumfield Relays 1887212-6	400 VAC	Plug In	5 ms		360 Ohms	10 ms	8.4 VDC	Socketable	General Purpose	-40 °C	70 °C	Silver Nickel (AgNi)	Non Latching	1.2 VDC	DPDT (2 Form C)	3200 VA	12 VDC	16.7 mA	8 A	cURus VDE	Class F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable

Technical documentation and resources
