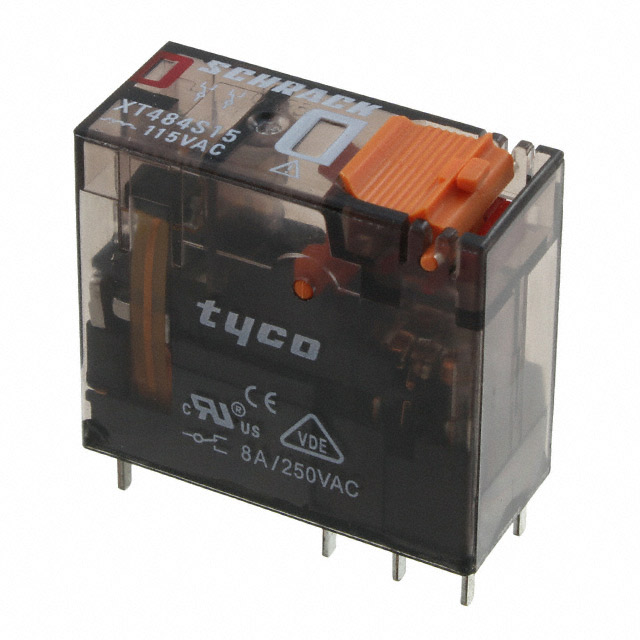

XT484S15
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 8A 115V
Deep-Dive with AI
Search across all available documentation for this part.
XT484S15
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 8A 115V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XT484S15 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 16.7 mA |
| Coil Resistance | 8.1 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 115 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A |
| Features | Lighted Indicator |
| Load - Max Switching | 3200 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 86.3 VAC |
| Must Release Voltage | 17.3 VAC |
| Operate Time | 9 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XT48 Series
General Purpose Relay DPDT (2 Form C) 115VAC Coil Socketable
