M80-8871001

Active

Harwin Inc.

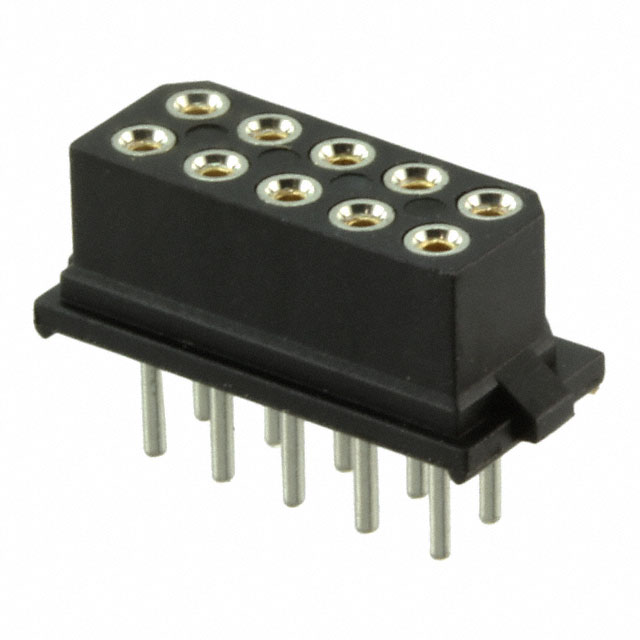

PCB RECEPTACLE, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet Datasheet +5

M80-8871001

Active

Harwin Inc.

PCB RECEPTACLE, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE MOUNT

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet Datasheet +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8871001

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	137.8 Áin
Contact Finish Thickness - Post	3.5 Ám
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height [z]	5.14 mm
Insulation Height [z]	0.202 in
Insulation Material	Polyester, Glass Filled
Mated Stacking Heights	7.85 mm, 7.23 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-887 Series

Part	Voltage Rating	Insulation Color	Termination	Contact Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Style	Material Flammability Rating	Connector Type	Contact Finish - Post	Contact Finish - Mating	Insulation Material	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Fastening Type	Applications	Mated Stacking Heights	Contact Material	Number of Positions
Harwin Inc. M80-8874405	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	4	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Gold	Gold	Polyester Glass Filled	Through Hole	10 çin	0.25 çm	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8870605	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	6	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Gold	Gold	Polyester Glass Filled	Through Hole	10 çin	0.25 çm	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8871801	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	18	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Tin-Lead	Gold	Polyester Glass Filled	Through Hole	137.8 Áin	3.5 Ám	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8871401	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	14	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Tin-Lead	Gold	Polyester Glass Filled	Through Hole	137.8 Áin	3.5 Ám	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8873405	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	34	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Gold	Gold	Polyester Glass Filled	Through Hole	10 çin	0.25 çm	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8871605	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm		-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Gold	Gold	Polyester Glass Filled	Through Hole	10 çin	0.25 çm	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper	16
Harwin Inc. M80-8873401	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	34	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Tin-Lead	Gold	Polyester Glass Filled	Through Hole	137.8 Áin	3.5 Ám	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8871601	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm		-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Tin-Lead	Gold	Polyester Glass Filled	Through Hole	137.8 Áin	3.5 Ám	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper	16
Harwin Inc. M80-8871001	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	10	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Tin-Lead	Gold	Polyester Glass Filled	Through Hole	137.8 Áin	3.5 Ám	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8872605	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	26	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Gold	Gold	Polyester Glass Filled	Through Hole	10 çin	0.25 çm	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
