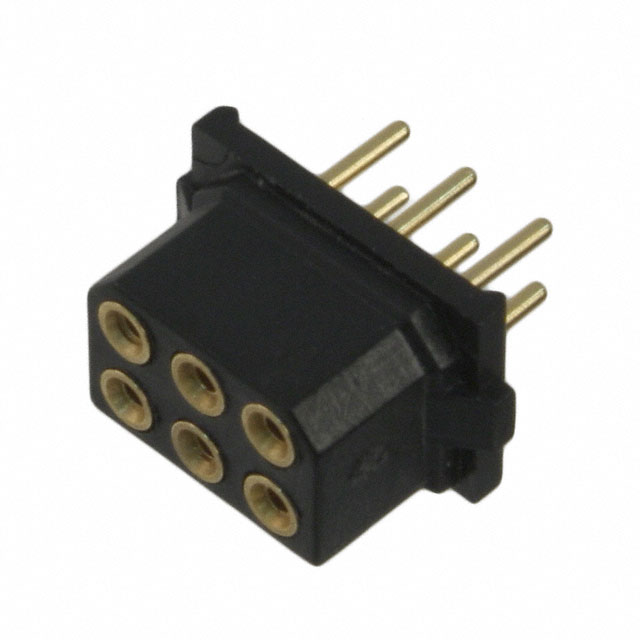

M80-8870605

Active

Harwin Inc.

CONN RCPT 6POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet M80-0110001 +2

M80-8870605

Active

Harwin Inc.

CONN RCPT 6POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet M80-0110001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8870605

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height [z]	5.14 mm
Insulation Height [z]	0.202 in
Insulation Material	Polyester, Glass Filled
Mated Stacking Heights	7.85 mm, 7.23 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-887 Series

Part	Voltage Rating	Insulation Color	Termination	Contact Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Style	Material Flammability Rating	Connector Type	Contact Finish - Post	Contact Finish - Mating	Insulation Material	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Fastening Type	Applications	Mated Stacking Heights	Contact Material	Number of Positions
Harwin Inc. M80-8874405	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	4	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Gold	Gold	Polyester Glass Filled	Through Hole	10 çin	0.25 çm	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8870605	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	6	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Gold	Gold	Polyester Glass Filled	Through Hole	10 çin	0.25 çm	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8871801	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	18	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Tin-Lead	Gold	Polyester Glass Filled	Through Hole	137.8 Áin	3.5 Ám	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8871401	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	14	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Tin-Lead	Gold	Polyester Glass Filled	Through Hole	137.8 Áin	3.5 Ám	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8873405	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	34	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Gold	Gold	Polyester Glass Filled	Through Hole	10 çin	0.25 çm	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8871605	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm		-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Gold	Gold	Polyester Glass Filled	Through Hole	10 çin	0.25 çm	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper	16
Harwin Inc. M80-8873401	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	34	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Tin-Lead	Gold	Polyester Glass Filled	Through Hole	137.8 Áin	3.5 Ám	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8871601	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm		-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Tin-Lead	Gold	Polyester Glass Filled	Through Hole	137.8 Áin	3.5 Ám	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper	16
Harwin Inc. M80-8871001	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	10	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Tin-Lead	Gold	Polyester Glass Filled	Through Hole	137.8 Áin	3.5 Ám	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper
Harwin Inc. M80-8872605	800 V	Black	Solder	Female Socket	Circular	12 µin	0.3 µm	26	-55 °C	125 °C	All	0.079 in	2 mm	Board to Board Cable	UL94 V-0	Receptacle	Gold	Gold	Polyester Glass Filled	Through Hole	10 çin	0.25 çm	2	0.079 in	2 mm	5.14 mm	0.202 in	0.118 in	3 mm	Locking Ramp	Automotive General Purpose Military	7.23 mm 7.85 mm	Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.73
		26	$ 4.07
		104	$ 3.79
		520	$ 3.22
		1014	$ 2.75

Description

General part information

M80-887 Series

6 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
