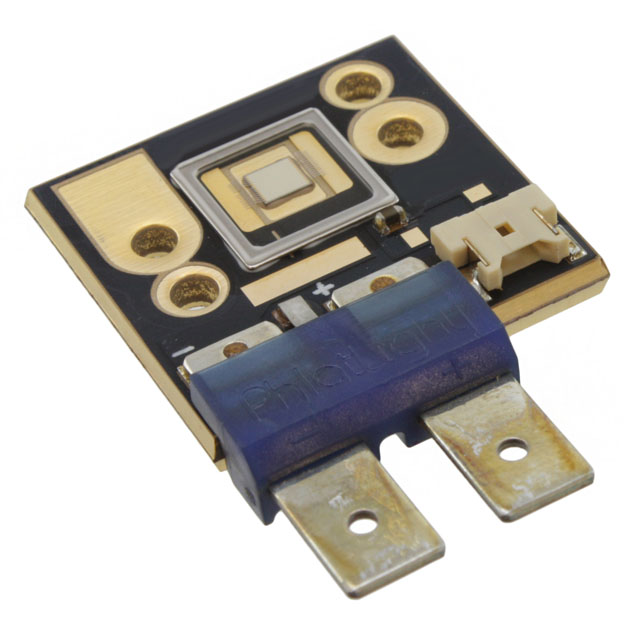

CBT-90-B-L11-J100

Active

Luminus Devices Inc.

LED MOD CBT-90 BLUE RECT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBT-90-B-L11-J100

Active

Luminus Devices Inc.

LED MOD CBT-90 BLUE RECT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CBT-90-B-L11-J100

Color	Blue
Configuration	Rectangle
Current - Max [Max]	27 A
Current - Test	13.5 A
Features	With Connector
Height [z]	4.08 mm
Lens Type	Flat
Light Emitting Surface (LES) [x]	3 mm
Light Emitting Surface (LES) [y]	3 mm
Size / Dimension [x]	28 mm
Size / Dimension [y]	26.75 mm
Temperature - Test	40 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	3.5 V
Wavelength	458 nm
Wavelength [Max]	470 nm
Wavelength [Min]	445 nm

CBT-90 Series

Part	CCT (K)	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Features	Type	Color	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Configuration	Lens Type	Height [z]	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Current - Test	Luminous Flux @ Current/Temperature	Temperature - Test	Lumens/Watt @ Current - Test	Wavelength	Wavelength [Min]	Wavelength [Max]
Luminus Devices Inc. CBT-90-W65S-C11-NB100	6500 K	3 mm	3 mm	With Connector	LED Module	Cool White	18 A	3.6 V	Rectangle	Flat	4.08 mm	26.75 mm	28 mm	70	9 A
Luminus Devices Inc. CBT-90-W65S-C11-NA100	6500 K	3 mm	3 mm	With Connector	LED Module	Cool White	18 A	3.6 V	Rectangle	Flat	4.08 mm	26.75 mm	28 mm	70	9 A
Luminus Devices Inc. CBT-90-G-L11-CM101-R2		3 mm	3 mm	With Connector	LED Module	Green	27 A	3.1 V	Rectangle	Flat	4.08 mm	26.75 mm	28 mm		13.5 A	2150 lm	40 °C	35 lm/W	527 nm
Luminus Devices Inc. CBT-90-RX-L15-BN100		3 mm	3 mm	With Connector	LED Module	Red	27 A	2.8 V	Rectangle	Flat	4.08 mm	26.75 mm	28 mm		13.5 A	1060 lm	40 °C	28 lm/W	621 nm	611 nm	631 nm
Luminus Devices Inc. CBT-90-R-C11-HH100		3 mm	3 mm	With Connector	LED Module	Red	18 A	2.5 V	Rectangle	Flat	4.08 mm	26.75 mm	28 mm		13.5 A	900 lm	40 °C	27 lm/W
Luminus Devices Inc. CBT-90-RX-L15-BN101		3 mm	3 mm	With Connector	LED Module	Red	27 A	2.8 V	Rectangle	Flat	4.08 mm	26.75 mm	28 mm		13.5 A	1060 lm	40 °C	28 lm/W	621 nm	615 nm	627 nm
Luminus Devices Inc. CBT-90-B-L11-J100		3 mm	3 mm	With Connector	LED Module	Blue	27 A	3.5 V	Rectangle	Flat	4.08 mm	26.75 mm	28 mm		13.5 A		40 °C		458 nm	445 nm	470 nm
Luminus Devices Inc. CBT-90-B-L11-H101		3 mm	3 mm	With Connector	LED Module	Blue	27 A	3.5 V	Rectangle	Flat	4.08 mm	26.75 mm	28 mm		13.5 A		40 °C		455 nm
Luminus Devices Inc. CBT-90-G-L11-CM102		3 mm	3 mm	With Connector	LED Module	Green	27 A	3.1 V	Rectangle	Flat	4.08 mm	26.75 mm	28 mm		13.5 A	2150 lm	40 °C	35 lm/W	527 nm
Luminus Devices Inc. CBT-90-G-L11-CM100-R2		3 mm	3 mm	With Connector	LED Module	Green	27 A	3.1 V	Rectangle	Flat	4.08 mm	26.75 mm	28 mm		13.5 A	2150 lm	40 °C	35 lm/W	527 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 78.63

Description

General part information

CBT-90 Series

LED Lighting COBs Engines Modules LED Module CBT-90 Blue Rectangle
