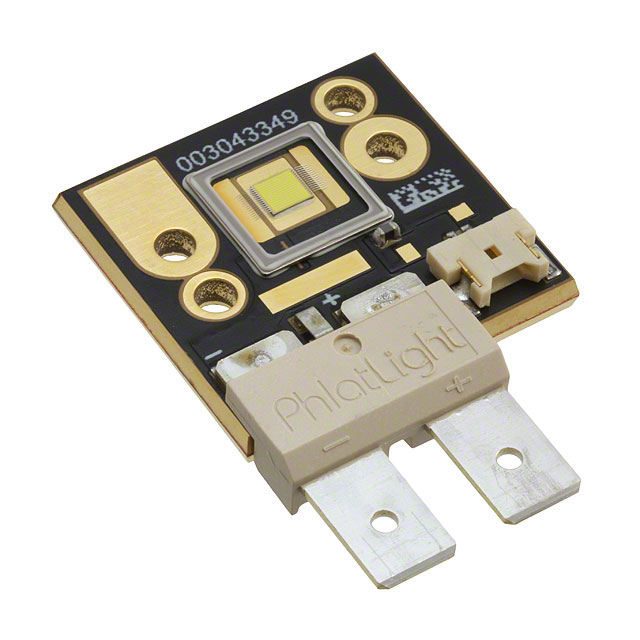

CBT-90-W65S-C11-NB100
ActiveLuminus Devices Inc.
LED MOD CBT-90 CL WH RECT 6500K
Deep-Dive with AI
Search across all available documentation for this part.
CBT-90-W65S-C11-NB100
ActiveLuminus Devices Inc.
LED MOD CBT-90 CL WH RECT 6500K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CBT-90-W65S-C11-NB100 |
|---|---|
| CCT (K) | 6500 K |
| Color | Cool, White |
| Configuration | Rectangle |
| CRI (Color Rendering Index) | 70 |
| Current - Max [Max] | 18 A |
| Current - Test | 9 A |
| Features | With Connector |
| Height [z] | 4.08 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [x] | 3 mm |
| Light Emitting Surface (LES) [y] | 3 mm |
| Size / Dimension [x] | 28 mm |
| Size / Dimension [y] | 26.75 mm |
| Type | LED Module |
| Voltage - Forward (Vf) (Typ) | 3.6 V |
CBT-90 Series
| Part | CCT (K) | Light Emitting Surface (LES) [y] | Light Emitting Surface (LES) [x] | Features | Type | Color | Current - Max [Max] | Voltage - Forward (Vf) (Typ) | Configuration | Lens Type | Height [z] | Size / Dimension [y] | Size / Dimension [x] | CRI (Color Rendering Index) | Current - Test | Luminous Flux @ Current/Temperature | Temperature - Test | Lumens/Watt @ Current - Test | Wavelength | Wavelength [Min] | Wavelength [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Luminus Devices Inc. | 6500 K | 3 mm | 3 mm | With Connector | LED Module | Cool White | 18 A | 3.6 V | Rectangle | Flat | 4.08 mm | 26.75 mm | 28 mm | 70 | 9 A | ||||||
Luminus Devices Inc. | 6500 K | 3 mm | 3 mm | With Connector | LED Module | Cool White | 18 A | 3.6 V | Rectangle | Flat | 4.08 mm | 26.75 mm | 28 mm | 70 | 9 A | ||||||
Luminus Devices Inc. | 3 mm | 3 mm | With Connector | LED Module | Green | 27 A | 3.1 V | Rectangle | Flat | 4.08 mm | 26.75 mm | 28 mm | 13.5 A | 2150 lm | 40 °C | 35 lm/W | 527 nm | ||||
Luminus Devices Inc. | 3 mm | 3 mm | With Connector | LED Module | Red | 27 A | 2.8 V | Rectangle | Flat | 4.08 mm | 26.75 mm | 28 mm | 13.5 A | 1060 lm | 40 °C | 28 lm/W | 621 nm | 611 nm | 631 nm | ||
Luminus Devices Inc. | 3 mm | 3 mm | With Connector | LED Module | Red | 18 A | 2.5 V | Rectangle | Flat | 4.08 mm | 26.75 mm | 28 mm | 13.5 A | 900 lm | 40 °C | 27 lm/W | |||||
Luminus Devices Inc. | 3 mm | 3 mm | With Connector | LED Module | Red | 27 A | 2.8 V | Rectangle | Flat | 4.08 mm | 26.75 mm | 28 mm | 13.5 A | 1060 lm | 40 °C | 28 lm/W | 621 nm | 615 nm | 627 nm | ||
Luminus Devices Inc. | 3 mm | 3 mm | With Connector | LED Module | Blue | 27 A | 3.5 V | Rectangle | Flat | 4.08 mm | 26.75 mm | 28 mm | 13.5 A | 40 °C | 458 nm | 445 nm | 470 nm | ||||
Luminus Devices Inc. | 3 mm | 3 mm | With Connector | LED Module | Blue | 27 A | 3.5 V | Rectangle | Flat | 4.08 mm | 26.75 mm | 28 mm | 13.5 A | 40 °C | 455 nm | ||||||
Luminus Devices Inc. | 3 mm | 3 mm | With Connector | LED Module | Green | 27 A | 3.1 V | Rectangle | Flat | 4.08 mm | 26.75 mm | 28 mm | 13.5 A | 2150 lm | 40 °C | 35 lm/W | 527 nm | ||||
Luminus Devices Inc. | 3 mm | 3 mm | With Connector | LED Module | Green | 27 A | 3.1 V | Rectangle | Flat | 4.08 mm | 26.75 mm | 28 mm | 13.5 A | 2150 lm | 40 °C | 35 lm/W | 527 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 108.79 | |
| 50 | $ 85.07 | |||
| 100 | $ 82.75 | |||
Description
General part information
CBT-90 Series
LED Lighting COBs Engines Modules LED Module CBT-90 White, Cool Rectangle
