ATHD04-1-8P

Active

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 1POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA Series Family Datasheet +1

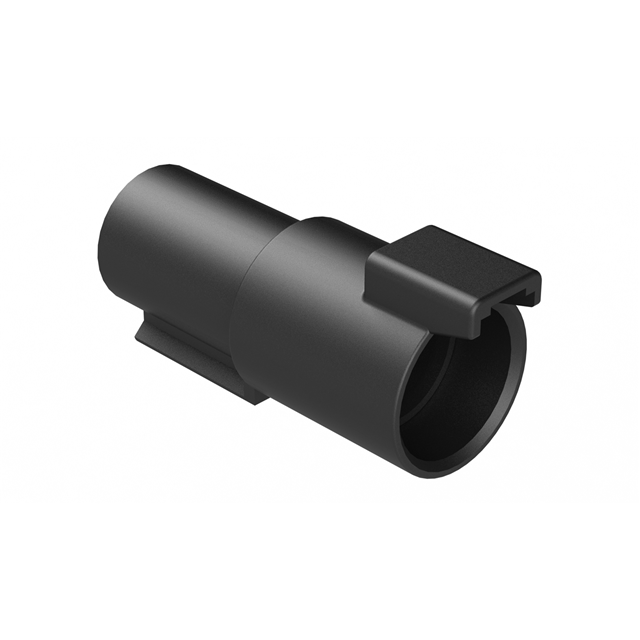

ATHD04-1-8P

Active

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 1POS INLINE

Deep-Dive with AI

DocumentsA Series Family Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATHD04-1-8P

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	8 Power
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shielding	Unshielded
Type	For Male Pins

ATHD04 Series

Part	Insert Material	Shielding	Type	Contact Size	Note	Housing Color	Contact Type	Ingress Protection	Fastening Type	Number of Positions	Connector Type	Mounting Type	Contact Shape	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mounting Feature	Color	Primary Material	Current Rating (Amps)	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Termination	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Amphenol Sine Systems Corp ATHD04-1-12P	Thermoplastic	Unshielded	For Male Pins	12 Power	Contacts Not Included	Black	Crimp	IP67 IP69K	Latch Lock	1	Receptacle Housing	Free Hanging (In-Line)	Circular	Keyed	-55 °C	125 °C
Amphenol Sine Systems Corp ATHD04-1-12P-PM05		Unshielded						IP68 - Dust Tight Waterproof	Latch Lock	1	Male Pins Receptacle			Keyed	-55 °C	125 °C	500 V	Flange	Black	Plastic	25 A	3.4 mm	0.17 in	0.134 in	4.32 mm	Crimp
Amphenol Sine Systems Corp ATHD04-1-8P-PM11		Unshielded						IP68 - Dust Tight Waterproof	Latch Lock	1	Male Pins Receptacle			Keyed	-55 °C	125 °C	500 V	Flange	Black	Plastic	25 A					Crimp	0.19 in	0.24 in	6.1 mm	4.83 mm
Amphenol Sine Systems Corp ATHD04-1-8P-PM05		Unshielded						IP68 - Dust Tight Waterproof	Latch Lock	1	Male Pins Receptacle			Keyed	-55 °C	125 °C	500 V	Flange	Black	Plastic	25 A					Crimp	0.19 in	0.24 in	6.1 mm	4.83 mm
Amphenol Sine Systems Corp ATHD04-1-8P	Thermoplastic	Unshielded	For Male Pins	8 Power	Contacts Not Included	Black	Crimp	IP67 IP69K	Latch Lock	1	Receptacle Housing	Free Hanging (In-Line)	Circular	Keyed	-55 °C	125 °C
Amphenol Sine Systems Corp ATHD04-1-12P-E003	Thermoplastic	Unshielded	For Male Pins	12 Power	Contacts Not Included	Black	Crimp	IP67 IP69K	Latch Lock	1	Receptacle Housing	Free Hanging (In-Line)	Circular	Keyed	-55 °C	125 °C
Amphenol Sine Systems Corp ATHD04-1-4P-L009		Unshielded	For Male Pins	4 Power	Contacts Not Included	Black	Crimp	IP67 IP69K	Latch Lock	1	Receptacle Housing		Circular		-55 °C	125 °C		Flange
Amphenol Sine Systems Corp ATHD04-1-12P-PM11		Unshielded						IP68 - Dust Tight Waterproof	Latch Lock	1	Male Pins Receptacle			Keyed	-55 °C	125 °C	500 V	Flange	Black	Plastic	25 A	3.4 mm	0.17 in	0.134 in	4.32 mm	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 3.64
		10	$ 3.30
		25	$ 3.13
		50	$ 3.05
		100	$ 2.91
		250	$ 2.55
		800	$ 2.25
		1600	$ 2.04
		3200	$ 1.96

Description

General part information

ATHD04 Series

1 (Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line)

Documents

Technical documentation and resources

A Series Family

Datasheet

ATHD Series

Datasheet
