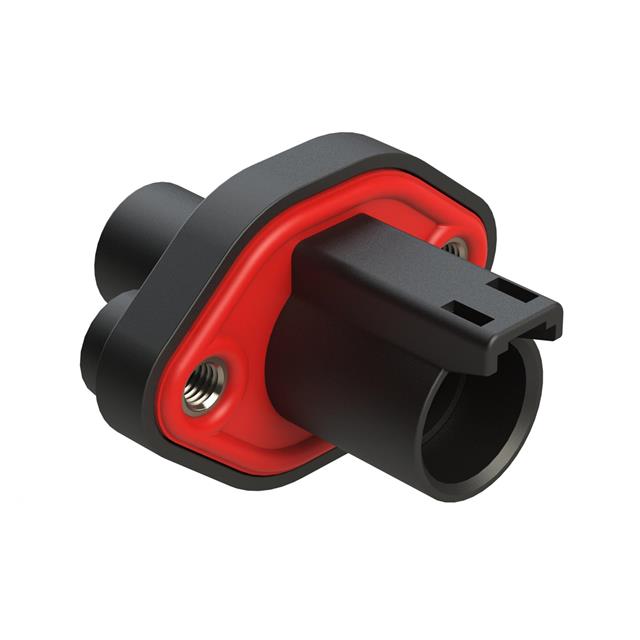

ATHD04-1-12P-PM05

Active

Amphenol Sine Systems Corp

SINGLE POLE, RECEPTACLE, PIN, SI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATHD04-1-12P-PM05

Active

Amphenol Sine Systems Corp

SINGLE POLE, RECEPTACLE, PIN, SI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATHD04-1-12P-PM05

Cable Opening [Max] [custom]	0.17 in
Cable Opening [Max] [custom]	4.32 mm
Cable Opening [Min] [custom]	3.4 mm
Cable Opening [Min] [custom]	0.134 in
Color	Black
Connector Type	Receptacle, Male Pins
Current Rating (Amps)	25 A
Fastening Type	Latch Lock
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Feature	Flange
Number of Positions	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	500 V

ATHD04 Series

Part	Insert Material	Shielding	Type	Contact Size	Note	Housing Color	Contact Type	Ingress Protection	Fastening Type	Number of Positions	Connector Type	Mounting Type	Contact Shape	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mounting Feature	Color	Primary Material	Current Rating (Amps)	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Termination	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Amphenol Sine Systems Corp ATHD04-1-12P	Thermoplastic	Unshielded	For Male Pins	12 Power	Contacts Not Included	Black	Crimp	IP67 IP69K	Latch Lock	1	Receptacle Housing	Free Hanging (In-Line)	Circular	Keyed	-55 °C	125 °C
Amphenol Sine Systems Corp ATHD04-1-12P-PM05		Unshielded						IP68 - Dust Tight Waterproof	Latch Lock	1	Male Pins Receptacle			Keyed	-55 °C	125 °C	500 V	Flange	Black	Plastic	25 A	3.4 mm	0.17 in	0.134 in	4.32 mm	Crimp
Amphenol Sine Systems Corp ATHD04-1-8P-PM11		Unshielded						IP68 - Dust Tight Waterproof	Latch Lock	1	Male Pins Receptacle			Keyed	-55 °C	125 °C	500 V	Flange	Black	Plastic	25 A					Crimp	0.19 in	0.24 in	6.1 mm	4.83 mm
Amphenol Sine Systems Corp ATHD04-1-8P-PM05		Unshielded						IP68 - Dust Tight Waterproof	Latch Lock	1	Male Pins Receptacle			Keyed	-55 °C	125 °C	500 V	Flange	Black	Plastic	25 A					Crimp	0.19 in	0.24 in	6.1 mm	4.83 mm
Amphenol Sine Systems Corp ATHD04-1-8P	Thermoplastic	Unshielded	For Male Pins	8 Power	Contacts Not Included	Black	Crimp	IP67 IP69K	Latch Lock	1	Receptacle Housing	Free Hanging (In-Line)	Circular	Keyed	-55 °C	125 °C
Amphenol Sine Systems Corp ATHD04-1-12P-E003	Thermoplastic	Unshielded	For Male Pins	12 Power	Contacts Not Included	Black	Crimp	IP67 IP69K	Latch Lock	1	Receptacle Housing	Free Hanging (In-Line)	Circular	Keyed	-55 °C	125 °C
Amphenol Sine Systems Corp ATHD04-1-4P-L009		Unshielded	For Male Pins	4 Power	Contacts Not Included	Black	Crimp	IP67 IP69K	Latch Lock	1	Receptacle Housing		Circular		-55 °C	125 °C		Flange
Amphenol Sine Systems Corp ATHD04-1-12P-PM11		Unshielded						IP68 - Dust Tight Waterproof	Latch Lock	1	Male Pins Receptacle			Keyed	-55 °C	125 °C	500 V	Flange	Black	Plastic	25 A	3.4 mm	0.17 in	0.134 in	4.32 mm	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.13
		10	$ 4.70
		25	$ 4.24
		50	$ 3.93
		100	$ 3.64
		250	$ 3.31
		500	$ 3.09

Description

General part information

ATHD04 Series

1 (Power) Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources
