1095841

Active

Phoenix Contact

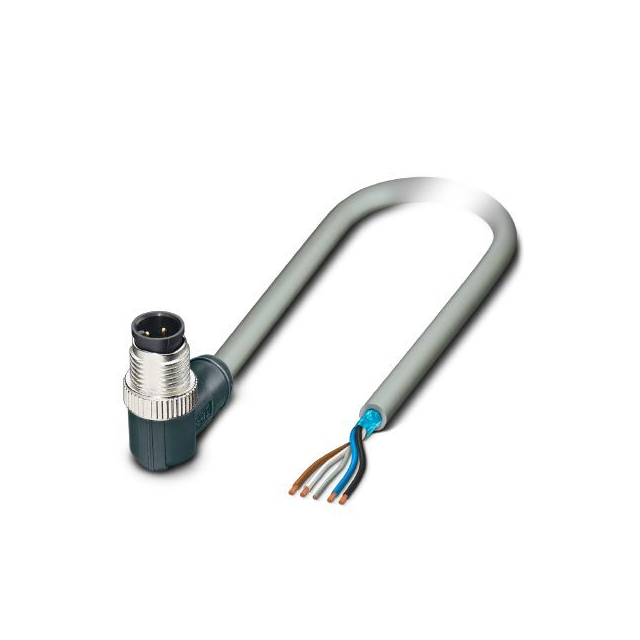

SENSOR CABLES / ACTUATOR CABLES SAC4PM12MR/10,0680 FDN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1095841

Active

Phoenix Contact

SENSOR CABLES / ACTUATOR CABLES SAC4PM12MR/10,0680 FDN

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1095841

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Gray
Ingress Protection	IP65, IP68, IP67
Shielding	Shielded

M12 Sensor Series

Sensor Cables / Actuator Cables SAC5P 5,0680/M12FR FDN

...

Part	1st Connector Number of Positions	1st Connector Orientation	Assembly Configuration	1st Connector Shell Size - Insert	Color	2nd Connector Number of Positions Loaded	1st Connector Type	2nd Connector Gender	1st Connector Mounting Type	2nd Connector Mounting Type	Shielding	Ingress Protection	1st Connector Number of Positions Loaded	Cable Material	2nd Connector Number of Positions	2nd Connector Shell Size - Insert	1st Connector Gender	2nd Connector Type	Cable Type	Length [x]	Length [x]	Length	Length
Phoenix Contact 1095806	5	A	Standard	M12	Gray	All	Plug	Female Sockets	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	IP65 IP67 IP68	All	Polyvinyl Chloride (PVC)	5	M12	Male Pins	Receptacle	Round
Phoenix Contact 1095841	4	A	Standard	M12	Gray		Plug Right Angle		Free Hanging (In-Line)		Shielded	IP65 IP67 IP68	All	Polyvinyl Chloride (PVC)			Male Pins	Wire Leads	Round
Phoenix Contact 1095813	5	A	Standard	M12	Gray		Plug Right Angle		Free Hanging (In-Line)		Shielded	IP65 IP67 IP68	All	Polyvinyl Chloride (PVC)			Male Pins	Wire Leads	Round
Phoenix Contact 1095902	4	A	Standard	M12	Gray	All	Plug	Female Sockets	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	IP65 IP67 IP68	All	Polyvinyl Chloride (PVC)	4	M12	Male Pins	Receptacle	Round	9.84 ft	3 m
Phoenix Contact 1095814	5	A	Standard	M12	Gray		Plug Right Angle		Free Hanging (In-Line)		Shielded	IP65 IP67 IP68	All	Polyvinyl Chloride (PVC)			Male Pins	Wire Leads	Round	49.2 ft	15 m
Phoenix Contact 1095956	5	A	Standard	M12	Gray		Receptacle Right Angle		Free Hanging (In-Line)		Shielded	IP65 IP67 IP68	All	Polyvinyl Chloride (PVC)			Female Sockets	Wire Leads	Round
Phoenix Contact 1095846	8 positions	A	Standard	M12	Gray	All	Plug	Female Sockets	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	IP65 IP67 IP68	All	Polyvinyl Chloride (PVC)	8	M12	Male Pins	Receptacle	Round	1.64 ft	500 mm
Phoenix Contact 1095960	5	A	Standard	M12	Gray		Receptacle		Free Hanging (In-Line)		Shielded	IP65 IP67 IP68	All	Polyvinyl Chloride (PVC)			Female Sockets	Wire Leads	Round	49.2 ft	15 m
Phoenix Contact 1095891	4	A	Standard	M12	Gray		Receptacle		Free Hanging (In-Line)		Shielded	IP65 IP67 IP68	All	Polyvinyl Chloride (PVC)			Female Sockets	Wire Leads	Round	49.2 ft	15 m
Phoenix Contact 1095940	5	A	Standard	M12	Gray		Plug Right Angle		Free Hanging (In-Line)		Shielded	IP65 IP67 IP68	All	Polyvinyl Chloride (PVC)			Male Pins	Wire Leads	Round			131.2 ft	40 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.96
		10	$ 31.24
		50	$ 28.87
		100	$ 27.51
		250	$ 25.81
Sager	N/A	1	$ 32.83
		10	$ 31.51
		25	$ 28.14

Description

General part information

M12 Sensor Series

Sensor Cables / Actuator Cables SAC5P 5,0680/M12FR FDN

Documents

Technical documentation and resources

Datasheet

Document
