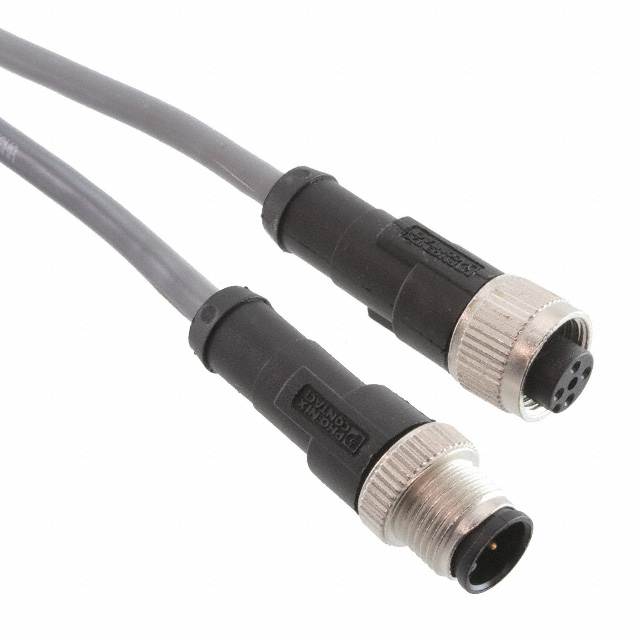

SENSOR CABLES / ACTUATOR CABLES SAC5PM12MS/5,0680 M12FS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1095806
ActivePhoenix Contact
SENSOR CABLES / ACTUATOR CABLES SAC5PM12MS/5,0680 M12FS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1095806 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Shell Size - Insert | M12 |
| 2nd Connector Type | Receptacle |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Gray |
| Ingress Protection | IP65, IP68, IP67 |
| Shielding | Shielded |
M12 Sensor Series
Sensor Cables / Actuator Cables SAC5P 5,0680/M12FR FDN
...
| Part | 1st Connector Number of Positions | 1st Connector Orientation | Assembly Configuration | 1st Connector Shell Size - Insert | Color | 2nd Connector Number of Positions Loaded | 1st Connector Type | 2nd Connector Gender | 1st Connector Mounting Type | 2nd Connector Mounting Type | Shielding | Ingress Protection | 1st Connector Number of Positions Loaded | Cable Material | 2nd Connector Number of Positions | 2nd Connector Shell Size - Insert | 1st Connector Gender | 2nd Connector Type | Cable Type | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact | 5 | A | Standard | M12 | Gray | All | Plug | Female Sockets | Free Hanging (In-Line) | Free Hanging (In-Line) | Shielded | IP65 IP67 IP68 | All | Polyvinyl Chloride (PVC) | 5 | M12 | Male Pins | Receptacle | Round | ||||
Phoenix Contact | 4 | A | Standard | M12 | Gray | Plug Right Angle | Free Hanging (In-Line) | Shielded | IP65 IP67 IP68 | All | Polyvinyl Chloride (PVC) | Male Pins | Wire Leads | Round | |||||||||
Phoenix Contact | 5 | A | Standard | M12 | Gray | Plug Right Angle | Free Hanging (In-Line) | Shielded | IP65 IP67 IP68 | All | Polyvinyl Chloride (PVC) | Male Pins | Wire Leads | Round | |||||||||
Phoenix Contact | 4 | A | Standard | M12 | Gray | All | Plug | Female Sockets | Free Hanging (In-Line) | Free Hanging (In-Line) | Shielded | IP65 IP67 IP68 | All | Polyvinyl Chloride (PVC) | 4 | M12 | Male Pins | Receptacle | Round | 9.84 ft | 3 m | ||
Phoenix Contact | 5 | A | Standard | M12 | Gray | Plug Right Angle | Free Hanging (In-Line) | Shielded | IP65 IP67 IP68 | All | Polyvinyl Chloride (PVC) | Male Pins | Wire Leads | Round | 49.2 ft | 15 m | |||||||
Phoenix Contact | 5 | A | Standard | M12 | Gray | Receptacle Right Angle | Free Hanging (In-Line) | Shielded | IP65 IP67 IP68 | All | Polyvinyl Chloride (PVC) | Female Sockets | Wire Leads | Round | |||||||||
Phoenix Contact | 8 positions | A | Standard | M12 | Gray | All | Plug | Female Sockets | Free Hanging (In-Line) | Free Hanging (In-Line) | Shielded | IP65 IP67 IP68 | All | Polyvinyl Chloride (PVC) | 8 | M12 | Male Pins | Receptacle | Round | 1.64 ft | 500 mm | ||
Phoenix Contact | 5 | A | Standard | M12 | Gray | Receptacle | Free Hanging (In-Line) | Shielded | IP65 IP67 IP68 | All | Polyvinyl Chloride (PVC) | Female Sockets | Wire Leads | Round | 49.2 ft | 15 m | |||||||
Phoenix Contact | 4 | A | Standard | M12 | Gray | Receptacle | Free Hanging (In-Line) | Shielded | IP65 IP67 IP68 | All | Polyvinyl Chloride (PVC) | Female Sockets | Wire Leads | Round | 49.2 ft | 15 m | |||||||
Phoenix Contact | 5 | A | Standard | M12 | Gray | Plug Right Angle | Free Hanging (In-Line) | Shielded | IP65 IP67 IP68 | All | Polyvinyl Chloride (PVC) | Male Pins | Wire Leads | Round | 131.2 ft | 40 m |
