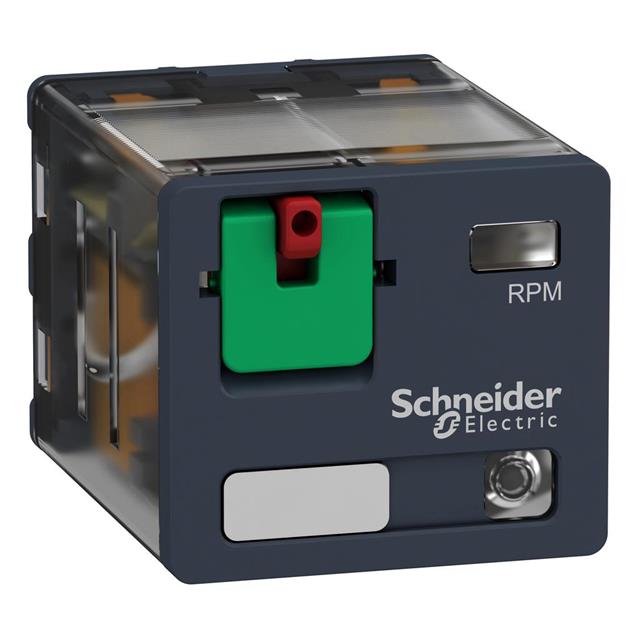

RPM32P7

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY: ELECTROMAGNETIC; 3PDT; 230VAC; ICONTACTS MAX: 15A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RPM32P7

Approval Agency	CSA, UL, EAC
Coil Current	24 mA
Coil Resistance	9.6 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	3PDT (3 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	15 A
Features	Test Button, Lighted Indicator
Load - Max Switching	3750 VA, 420 W
Mounting Type	Socketable
Must Operate Voltage	184 VAC
Must Release Voltage	34.5 VAC
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 28 VDC
Termination Style	Plug In

zelio-relay Series

Part	Approval Agency	Load - Max Switching	Coil Voltage	Contact Form	Features	Relay Type	Must Operate Voltage	Termination Style	Contact Material	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Must Release Voltage	Switching Voltage	Coil Type	Coil Resistance	Contact Rating (Current)	Coil Current	Release Time	Load - Max Switching [Max]	Switching Voltage [Max]
SQUARE D BY SCHNEIDER ELECTRIC RPM42B7	CSA EAC UL	420 W 3750 VA	24 VAC	4PDT (4 Form C)	Lighted Indicator Test Button	General Purpose	19.2 VAC	Plug In	Silver Nickel (AgNi)	20 ms	-40 °C	55 °C	Socketable	3.6 VAC	28 VDC 250 VAC	Non Latching	80 Ohms	15 A	300 mA	20 ms
SQUARE D BY SCHNEIDER ELECTRIC RPM32P7	CSA EAC UL	420 W 3750 VA	230 VAC	3PDT (3 Form C)	Lighted Indicator Test Button	General Purpose	184 VAC	Plug In	Silver Nickel (AgNi)	20 ms	-40 °C	55 °C	Socketable	34.5 VAC	28 VDC 250 VAC	Non Latching	9.6 kOhms	15 A	24 mA	20 ms
SQUARE D BY SCHNEIDER ELECTRIC RSL1PRBU	CSA GOST UL		24 VDC	SPDT (1 Form C)	Lighted Indicator	General Purpose		Spring Terminal	Silver Tin Oxide (AgSnO)	12 ms	-40 °C	55 °C	DIN Rail	1.2 VDC		Non Latching	3.39 kOhms	6 A	7.1 mA	5 ms	1662 VA	277 VAC
SQUARE D BY SCHNEIDER ELECTRIC RPM22F7	CSA EAC UL	420 W 3750 VA	120 VAC	DPDT (2 Form C)	Lighted Indicator Test Button	General Purpose	96 VAC	Plug In	Silver Nickel (AgNi)	20 ms	-40 °C	55 °C	Socketable	18 VAC	28 VDC 250 VAC	Non Latching	4.43 kOhms	15 A	27.1 mA	20 ms
SQUARE D BY SCHNEIDER ELECTRIC RSL1PREU	CSA GOST UL		48 VDC	SPDT (1 Form C)	Lighted Indicator	General Purpose	38.4 VDC	Screw Terminal	Silver Tin Oxide (AgSnO)	5 ms	-40 °C	55 °C	DIN Rail	2.4 VDC		Non Latching	10.6 kOhms	6 A	4.5 mA	12 ms	1662 VA	277 VAC
SQUARE D BY SCHNEIDER ELECTRIC RPM42JD	CSA EAC UL	420 W 3750 VA	12 VDC	4PDT (4 Form C)	Lighted Indicator Test Button	General Purpose	9.6 VDC	Plug In	Silver Nickel (AgNi)	20 ms	-40 °C	55 °C	Socketable	1.2 VDC	28 VDC 250 VAC	Non Latching	75.8 Ohms	15 A	158.3 mA	20 ms
SQUARE D BY SCHNEIDER ELECTRIC RUMC22BD	CSA EAC UL	280 W 2500 VA	24 VDC	DPDT (2 Form C)	Lighted Indicator Test Button	General Purpose	19.2 VDC	Plug In	Silver Nickel (AgNi)	20 ms	-40 °C	55 °C	Socketable	2.4 VDC	28 VDC 250 VAC	Non Latching	470 Ohms	10 A	51.1 mA	20 ms
SQUARE D BY SCHNEIDER ELECTRIC RUMC31ED	CSA EAC UL	280 W 2500 VA	48 VDC	3PDT (3 Form C)	Test Button	General Purpose	38.4 VDC	Plug In	Silver Nickel (AgNi)	20 ms	-40 °C	55 °C	Socketable	4.8 VDC	28 VDC 250 VAC	Non Latching		10 A	26.7 mA	20 ms
SQUARE D BY SCHNEIDER ELECTRIC RPM22JD	CSA EAC UL	420 W 3750 VA	12 VDC	DPDT (2 Form C)	Lighted Indicator Test Button	General Purpose	9.6 VDC	Plug In	Silver Nickel (AgNi)	20 ms	-40 °C	55 °C	Socketable	1.2 VDC	28 VDC 250 VAC	Non Latching	160 Ohms	15 A	75 mA	20 ms
SQUARE D BY SCHNEIDER ELECTRIC RUMC31F7	CSA EAC UL	280 W 2500 VA	120 VAC	3PDT (3 Form C)	Lighted Indicator	General Purpose	96 VAC	Plug In	Silver Nickel (AgNi)	20 ms	-40 °C	55 °C	Socketable	18 VAC	28 VDC 250 VAC	Non Latching	1.7 kOhms	10 A	70.6 mA	20 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.36
		10	$ 16.32
		25	$ 15.51
		50	$ 14.69
		100	$ 13.87
		250	$ 12.65
		500	$ 11.83
TME	N/A	1	$ 27.80
		10	$ 26.96
		20	$ 25.28

Description

General part information

zelio-relay Series

General Purpose Relay 3PDT (3 Form C) 230VAC Coil Socketable
