RPM22JD
ActivePOWER RELAY, DPDT, 12 VDC, 15 A, ZELIO RPM SERIES, SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
RPM22JD
ActivePOWER RELAY, DPDT, 12 VDC, 15 A, ZELIO RPM SERIES, SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RPM22JD |
|---|---|
| Approval Agency | CSA, UL, EAC |
| Coil Current | 75 mA |
| Coil Resistance | 160 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 15 A |
| Features | Test Button, Lighted Indicator |
| Load - Max Switching | 3750 VA, 420 W |
| Mounting Type | Socketable |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 250 VAC, 28 VDC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
zelio-relay Series

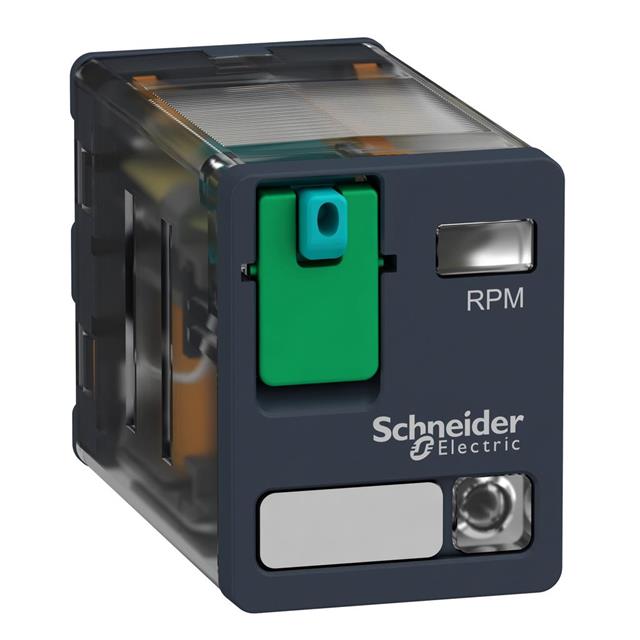

The RPM22JD is a Power Relay with DPDT AgNi contacts and quick-connect terminals. This Zelio RPM-series socket mount relay features lockable test pushbutton control, LED status and without coil interference suppression. Standard pin arrangement (with socket). Input and output current and voltage adaptation. Suitable for simple hard-wired logic control system cycles.
