TD1-1A-DC-3-H

Active

Switch Components

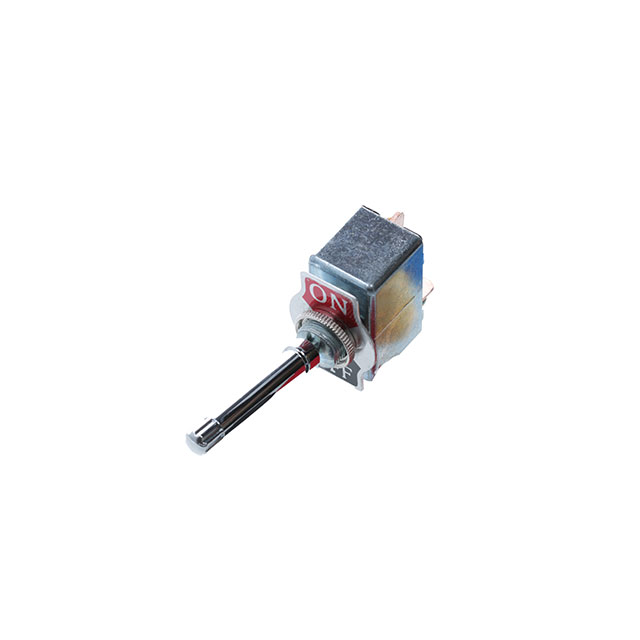

SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 50A/12VDC; LEADS: SCREW; TD/TD1

Search across all available documentation for this part.

Active

Switch Components

SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 50A/12VDC; LEADS: SCREW; TD/TD1

Technical Specifications

Parameters and characteristics for this part

Specification	TD1-1A-DC-3-H

Actuator Length [x]	40.9 mm
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPST
Current Rating (Amps)	50 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - DC	12 V

Part	Illumination	Voltage Rating - DC	Bushing Thread	Bushing Thread	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Actuator Type	Panel Cutout Dimensions [diameter]	Termination Style	Switch Function	Electrical Life	Current Rating (Amps)	Circuit
Switch Components TD1-1A-DC-3-M	Non-Illuminated	12 V	M12	0.75	85 °C	-20 C	38.4 mm	Flatted	12.2 mm	Screw Terminal	On-Off	6000 Cycles	50 A	SPST
Switch Components TD1-1A-DC-3-H	Non-Illuminated	12 V	M12	0.75	85 °C	-20 C	40.9 mm	Standard Round	12.2 mm	Screw Terminal	On-Off	6000 Cycles	50 A	SPST
Switch Components TD1-1A-DC-3-B	Non-Illuminated	12 V	M12	0.75	85 °C	-20 C	28.8 mm	Flatted	12.2 mm	Screw Terminal	On-Off	6000 Cycles	50 A	SPST

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
