TD1-1A-DC-3-M

Active

Switch Components

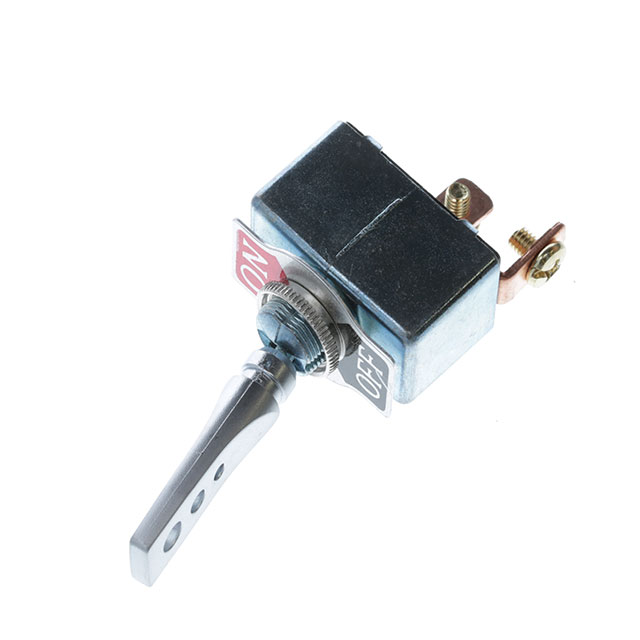

SWITCH TOGGLE SPST 50A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPST 50A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TD1-1A-DC-3-M

Actuator Length [x]	38.4 mm
Actuator Type	Flatted
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPST
Current Rating (Amps)	50 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - DC	12 V

Part	Illumination	Voltage Rating - DC	Bushing Thread	Bushing Thread	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Actuator Type	Panel Cutout Dimensions [diameter]	Termination Style	Switch Function	Electrical Life	Current Rating (Amps)	Circuit
Switch Components TD1-1A-DC-3-M	Non-Illuminated	12 V	M12	0.75	85 °C	-20 C	38.4 mm	Flatted	12.2 mm	Screw Terminal	On-Off	6000 Cycles	50 A	SPST
Switch Components TD1-1A-DC-3-H	Non-Illuminated	12 V	M12	0.75	85 °C	-20 C	40.9 mm	Standard Round	12.2 mm	Screw Terminal	On-Off	6000 Cycles	50 A	SPST
Switch Components TD1-1A-DC-3-B	Non-Illuminated	12 V	M12	0.75	85 °C	-20 C	28.8 mm	Flatted	12.2 mm	Screw Terminal	On-Off	6000 Cycles	50 A	SPST
