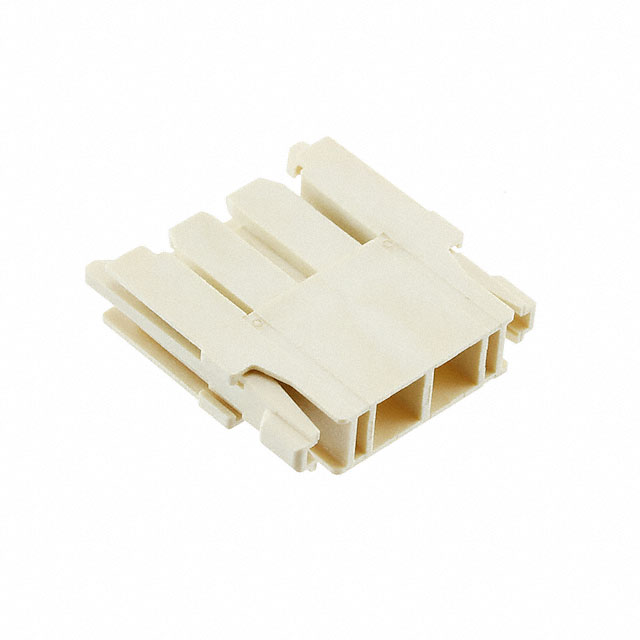

DF64-2P-4.5C

Obsolete

Hirose Electric USA, Inc.

CONN SSL RCPT HSG 2POS 4.5MM

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN SSL RCPT HSG 2POS 4.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	DF64-2P-4.5C

Connector Type	Receptacle Housing for Non-Gendered Contact
Current Rating (Amps)	3 A, 5 A, 4 A
Fastening Type	Latch Lock
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP)
Mating Cycles	10
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.177 in
Pitch [x]	4.5 mm
Style	Board to Board, Cable
Termination	Crimp
Voltage Rating	350 V

Part	Voltage Rating	Number of Positions	Style	Connector Type	Wire Gauge [Max]	Wire Gauge [Min]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination	Contact Material	Contact Finish	Housing Material	Features	Pitch [x]	Pitch [x]	Housing Color	Fastening Type	Mating Cycles
Hirose Electric USA, Inc. DF64-1822PC	350 V	1	Board to Board Cable	Contact Non-Gendered	22 AWG	17.5 AWG	3 A 4 A 5 A	105 ░C	-55 °C	Free Hanging (In-Line)	Crimp	Phosphor Bronze	Tin
Hirose Electric USA, Inc. DF64-3P-4.5H(21)	350 V		Board to Board Cable	Plug Non-Gendered			3 A 4 A 5 A	105 ░C	-55 °C	Surface Mount Right Angle	Solder	Copper Alloy	Tin	Liquid Crystal Polymer (LCP)	Solder Retention	0.177 in	4.5 mm	Beige	Latch Holder	10
Hirose Electric USA, Inc. DF64-1822PCF	350 V	1	Board to Board Cable	Contact Non-Gendered	22 AWG	17.5 AWG	3 A 4 A 5 A	105 ░C	-55 °C	Free Hanging (In-Line)	Crimp	Phosphor Bronze	Tin
Hirose Electric USA, Inc. DF64-2P-4.5C	350 V	2	Board to Board Cable	Receptacle Housing for Non-Gendered Contact			3 A 4 A 5 A	105 ░C	-55 °C	Free Hanging (In-Line)	Crimp			Liquid Crystal Polymer (LCP)		0.177 in	4.5 mm	Beige	Latch Lock	10
Hirose Electric USA, Inc. DF64-3P-4.5C	350 V		Board to Board Cable	Receptacle Housing for Non-Gendered Contact			3 A 4 A 5 A	105 ░C	-55 °C	Free Hanging (In-Line)	Crimp			Liquid Crystal Polymer (LCP)		0.177 in	4.5 mm	Beige	Latch Lock	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SSL Connector 2 Position Receptacle Housing for Non-Gendered Contact Board to Board or Cable 0.177" (4.50mm) Crimp
