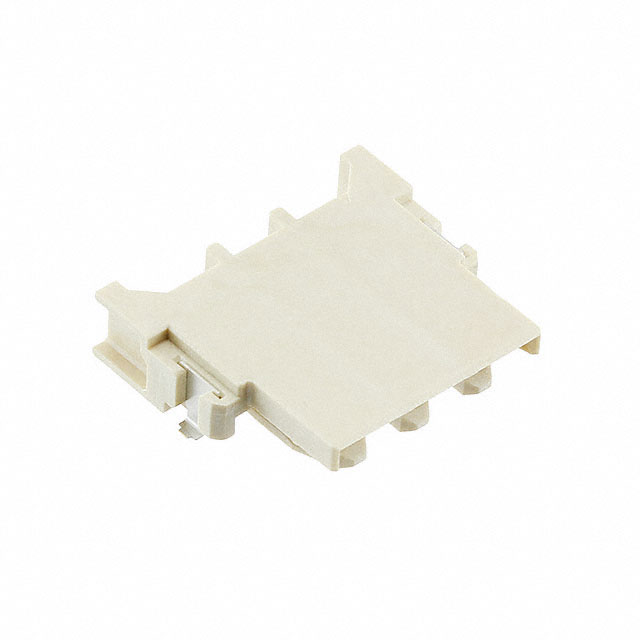

DF64-3P-4.5H(21)

Obsolete

Hirose Electric USA, Inc.

CONN SSL PLUG 3POS 4.5MM SOLDER

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN SSL PLUG 3POS 4.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Number of Positions	Style	Connector Type	Wire Gauge [Max]	Wire Gauge [Min]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination	Contact Material	Contact Finish	Housing Material	Features	Pitch [x]	Pitch [x]	Housing Color	Fastening Type	Mating Cycles
Hirose Electric USA, Inc. DF64-1822PC	350 V	1	Board to Board Cable	Contact Non-Gendered	22 AWG	17.5 AWG	3 A 4 A 5 A	105 ░C	-55 °C	Free Hanging (In-Line)	Crimp	Phosphor Bronze	Tin
Hirose Electric USA, Inc. DF64-3P-4.5H(21)	350 V		Board to Board Cable	Plug Non-Gendered			3 A 4 A 5 A	105 ░C	-55 °C	Surface Mount Right Angle	Solder	Copper Alloy	Tin	Liquid Crystal Polymer (LCP)	Solder Retention	0.177 in	4.5 mm	Beige	Latch Holder	10
Hirose Electric USA, Inc. DF64-1822PCF	350 V	1	Board to Board Cable	Contact Non-Gendered	22 AWG	17.5 AWG	3 A 4 A 5 A	105 ░C	-55 °C	Free Hanging (In-Line)	Crimp	Phosphor Bronze	Tin
Hirose Electric USA, Inc. DF64-2P-4.5C	350 V	2	Board to Board Cable	Receptacle Housing for Non-Gendered Contact			3 A 4 A 5 A	105 ░C	-55 °C	Free Hanging (In-Line)	Crimp			Liquid Crystal Polymer (LCP)		0.177 in	4.5 mm	Beige	Latch Lock	10
Hirose Electric USA, Inc. DF64-3P-4.5C	350 V		Board to Board Cable	Receptacle Housing for Non-Gendered Contact			3 A 4 A 5 A	105 ░C	-55 °C	Free Hanging (In-Line)	Crimp			Liquid Crystal Polymer (LCP)		0.177 in	4.5 mm	Beige	Latch Lock	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SSL Connector 3 Position Plug, Non-Gendered Board to Board or Cable 0.177" (4.50mm) Solder
