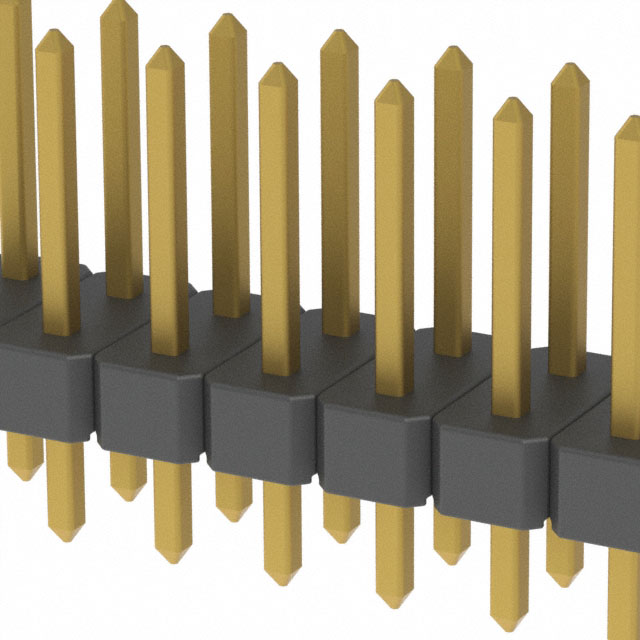

M22-2580805 - M22-258xx05

M22-2580805

Active
Harwin Inc.

BOARD CONNECTOR, 16 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR, PLUG, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM22 Series Spec SheetDatasheet+1
M22-2580805 - M22-258xx05

M22-2580805

Active
Harwin Inc.

BOARD CONNECTOR, 16 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.079 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR, PLUG, ROHS COMPLIANT

Deep-Dive with AI

DocumentsM22 Series Spec SheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationM22-2580805
Connector TypeCuttable, Header
Contact Finish - MatingGold
Contact Length - Mating0.197 in
Contact Length - Mating5 mm
Contact Length - Post0.091 in
Contact Length - Post2.3 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)1 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height1.5 mm
Insulation Height0.059 "
Insulation MaterialNylon 6T, Polyamide (PA6T)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions16
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Overall Contact Length8.8 mm
Overall Contact Length0.346 in
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingUnshrouded
StyleBoard to Board, Cable
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.70
10$ 1.48
500$ 1.10
1000$ 0.95
5000$ 0.84
10000$ 0.82
NewarkEach 500$ 0.91
1000$ 0.86

Description

General part information

M22-258 Series

Connector Header Through Hole 16 position 0.079" (2.00mm)
