M22-2580546

Active

Harwin Inc.

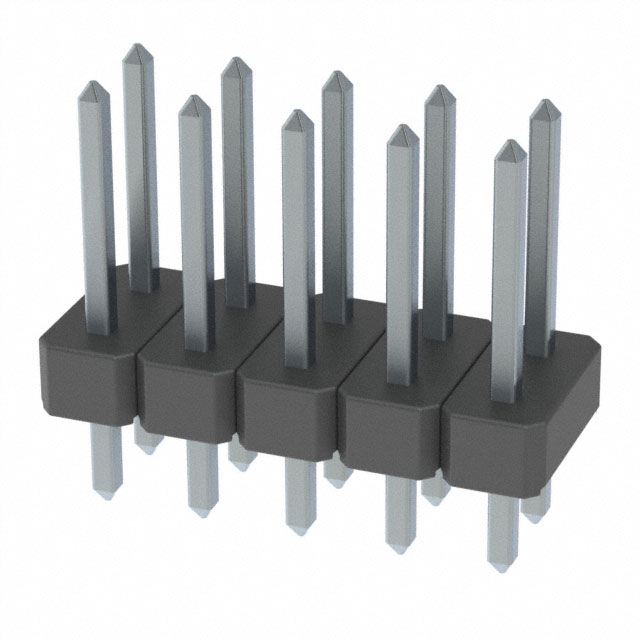

5+5 POS. MALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM22 Series Spec Sheet Datasheet +1

M22-2580546

Active

Harwin Inc.

5+5 POS. MALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM22 Series Spec Sheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-2580546

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	0.197 in
Contact Length - Mating	5 mm
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	8.8 mm
Overall Contact Length	0.346 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

M22-258 Series

Part	Insulation Material	Material Flammability Rating	Fastening Type	Termination	Current Rating (Amps)	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Overall Contact Length	Overall Contact Length	Contact Shape	Shrouding	Contact Material	Connector Type	Contact Finish - Post	Number of Rows	Number of Positions	Mounting Type	Number of Positions Loaded	Style	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Number of Positions
Harwin Inc. M22-2580946	Nylon 6T Polyamide (PA6T)	UL94 V-0	Push-Pull	Solder	1 A	Black	-40 °C	105 ░C	1.5 mm	0.059 "	0.091 in	2.3 mm	0.079 in	2 mm	Male Pin	0.079 in	2 mm	8.8 mm	0.346 in	Square	Unshrouded	Phosphor Bronze	Cuttable Header	Tin	2	18	Through Hole	All	Board to Board Cable	0.197 in	5 mm
Harwin Inc. M22-2580305	Nylon 6T Polyamide (PA6T)	UL94 V-0	Push-Pull	Solder	1 A	Black	-40 °C	105 ░C	1.5 mm	0.059 "	0.091 in	2.3 mm	0.079 in	2 mm	Male Pin	0.079 in	2 mm	8.8 mm	0.346 in	Square	Unshrouded	Phosphor Bronze	Cuttable Header		2	6	Through Hole	All	Board to Board Cable	0.197 in	5 mm	Gold
Harwin Inc. M22-2580405	Nylon 6T Polyamide (PA6T)	UL94 V-0	Push-Pull	Solder	1 A	Black	-40 °C	105 ░C	1.5 mm	0.059 "	0.091 in	2.3 mm	0.079 in	2 mm	Male Pin	0.079 in	2 mm	8.8 mm	0.346 in	Square	Unshrouded	Phosphor Bronze	Cuttable Header		2	8	Through Hole	All	Board to Board Cable	0.197 in	5 mm	Gold
Harwin Inc. M22-2580805	Nylon 6T Polyamide (PA6T)	UL94 V-0	Push-Pull	Solder	1 A	Black	-40 °C	105 ░C	1.5 mm	0.059 "	0.091 in	2.3 mm	0.079 in	2 mm	Male Pin	0.079 in	2 mm	8.8 mm	0.346 in	Square	Unshrouded	Phosphor Bronze	Cuttable Header		2		Through Hole	All	Board to Board Cable	0.197 in	5 mm	Gold	16
Harwin Inc. M22-2580546	Nylon 6T Polyamide (PA6T)	UL94 V-0	Push-Pull	Solder	1 A	Black	-40 °C	105 ░C	1.5 mm	0.059 "	0.091 in	2.3 mm	0.079 in	2 mm	Male Pin	0.079 in	2 mm	8.8 mm	0.346 in	Square	Unshrouded	Phosphor Bronze	Cuttable Header	Tin	2	10	Through Hole	All	Board to Board Cable	0.197 in	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.52
		10	$ 0.44
		100	$ 0.39
		500	$ 0.32
		1000	$ 0.32
Newark	Each	1000	$ 0.45

Description

General part information

M22-258 Series

Connector Header Through Hole 10 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M22 Series Spec Sheet

Datasheet

M22-2580546
