TMC5130-EVAL

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR TMC5130

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL BOARD FOR TMC5130

Technical Specifications

Parameters and characteristics for this part

Part	Secondary Attributes	Contents	Primary Attributes	Utilized IC / Part	Type	Supplied Contents	Supplier Device Package	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Load [Max]	Voltage - Load [Min]	Step Resolution [Max]	Step Resolution [Min]	Interface	Applications	Mounting Type	Motor Type - Stepper	Package / Case	Function	Output Configuration
Analog Devices Inc./Maxim Integrated TMC5130A-BOB	SPI Interface(s)	Board(s)	Motors (Stepper)	TMC5130A	Power Management	Board(s)
Analog Devices Inc./Maxim Integrated TMC5130A-TA							48-TQFP-EP (7x7)	1.4 A	-40 °C	125 ¯C	Power MOSFET	46 V	5.5 V	46 V	4.75 V	1	0.00390625	RS-232 SPI Step/Direction	General Purpose	Surface Mount	Bipolar	48-TQFP Exposed Pad	Driver - Fully Integrated Control and Power Stage	Half Bridge (4)
Analog Devices Inc./Maxim Integrated TMC5130-EVAL	SPI Interface(s)			TMC5130	Power Management	Board(s)
Analog Devices Inc./Maxim Integrated TMC5130A-TA-T							48-TQFP-EP (7x7)	1.4 A	-40 °C	125 ¯C	Power MOSFET	46 V	5.5 V	46 V	4.75 V	1	0.00390625	RS-232 SPI Step/Direction	General Purpose	Surface Mount	Bipolar	48-TQFP Exposed Pad	Driver - Fully Integrated Control and Power Stage	Half Bridge (4)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 67.94

General part information

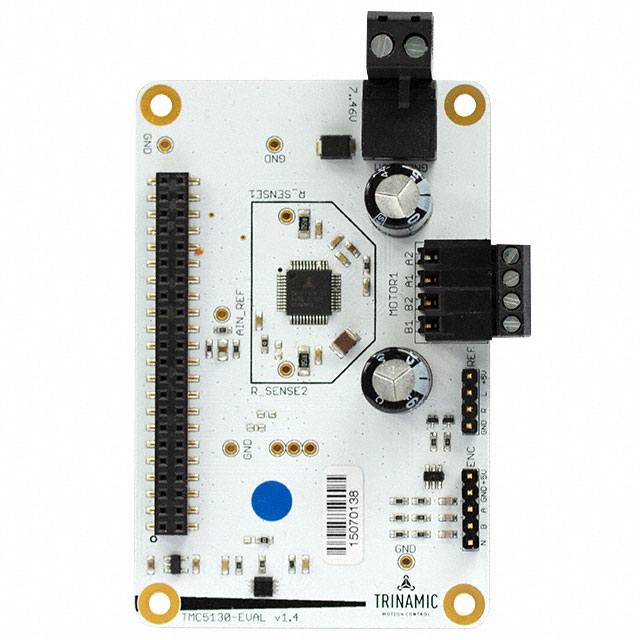

TMC5130 Motor Controller/Driver, Stepper Power Management Evaluation Board
