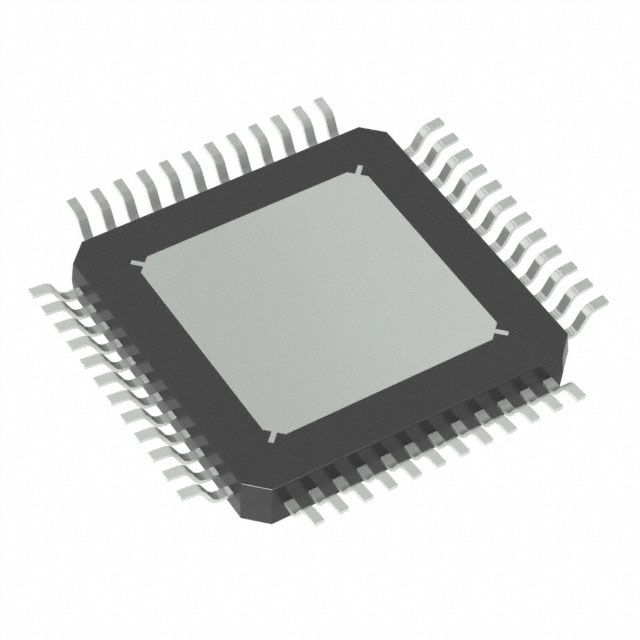

TMC5130A-TA-T
ActiveAnalog Devices Inc./Maxim Integrated
IC MTR DRV BIPOLAR 5.5-46V 48QFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC5130A-TA-T
ActiveAnalog Devices Inc./Maxim Integrated
IC MTR DRV BIPOLAR 5.5-46V 48QFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMC5130A-TA-T |
|---|---|
| Applications | General Purpose |
| Current - Output | 1.4 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | RS-232, SPI, Step/Direction |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (4) |
| Package / Case | 48-TQFP Exposed Pad |
| Step Resolution [Max] | 1 |
| Step Resolution [Min] | 0.00390625 |
| Supplier Device Package | 48-TQFP-EP (7x7) |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 46 V |
| Voltage - Load [Min] | 4.75 V |
| Voltage - Supply [Max] | 46 V |
| Voltage - Supply [Min] | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.25 | |
| 10 | $ 6.40 | |||
| 25 | $ 5.66 | |||
| 100 | $ 4.84 | |||
| 250 | $ 4.44 | |||
| 500 | $ 4.20 | |||
| 1000 | $ 3.99 | |||
| Digi-Reel® | 1 | $ 9.25 | ||
| 10 | $ 6.40 | |||
| 25 | $ 5.66 | |||
| 100 | $ 4.84 | |||
| 250 | $ 4.44 | |||
| 500 | $ 4.20 | |||
| 1000 | $ 3.99 | |||
| Tape & Reel (TR) | 2000 | $ 3.89 | ||
Description
General part information
TMC5130 Series
Bipolar Motor Driver Power MOSFET SPI, Step/Direction, RS-232 48-TQFP-EP (7x7)
