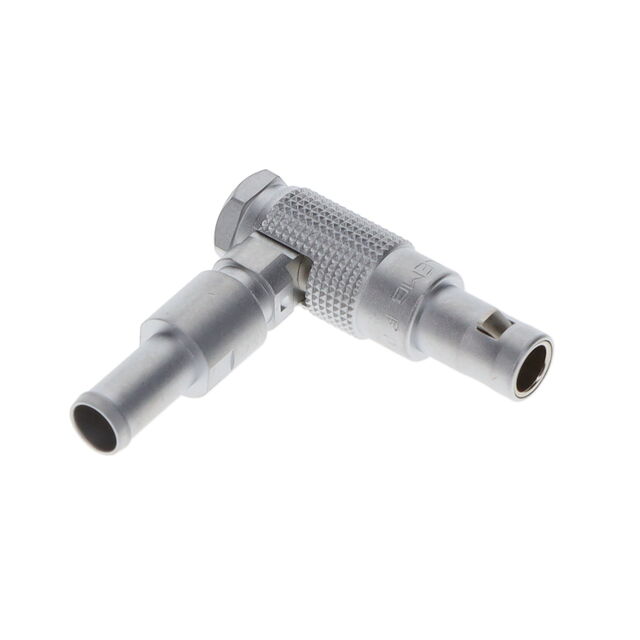

FPG.00.304.CLAD35Z
ActiveLEMO
CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FPG.00.304.CLAD35Z
ActiveLEMO
CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FPG.00.304.CLAD35Z |
|---|---|
| Backshell Material, Plating | Brass, Chrome |
| Cable Opening [diameter] | 3.5 mm |
| Cable Opening [diameter] | 0.138 in, 0.106 in |
| Cable Opening [diameter] | 2.7 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Material | Brass |
| Current Rating (Amps) | 2 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 4 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shell Size - Insert | 304 |
| Shielding | Shielded |
FPG.00.304 Series
| Part | Shell Size - Insert | Number of Positions | Material Flammability Rating | Color | Ingress Protection | Features | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Backshell Material, Plating | Shell Finish | Contact Material | Primary Material | Insert Material | Connector Type | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Mounting Type | Current Rating (Amps) | Shell Material | Shielding | Fastening Type | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
304 | 4 | UL94 V-0 | Silver | IP50 | Backshell | G | -55 °C | 250 °C | Brass Chrome | Chrome | Brass | Metal | Polyetheretherketone (PEEK) | Male Pins Plug | 3.5 mm | 0.106 in 0.138 in | 2.7 mm | Free Hanging (In-Line) Right Angle | 2 A | Brass | Shielded | Push-Pull | Gold | 1 µm | 39.4 µin | |
304 | 4 | UL94 V-0 | Silver | IP50 | Backshell | G | -55 °C | 250 °C | Brass Chrome | Chrome | Brass | Metal | Polyetheretherketone (PEEK) | Male Pins Plug | 3.5 mm | 0.106 in 0.138 in | 2.7 mm | Free Hanging (In-Line) Right Angle | 2 A | Brass | Shielded | Push-Pull | Gold | 1 µm | 39.4 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.36 | |
| 10 | $ 42.54 | |||
| 25 | $ 40.90 | |||
| 50 | $ 39.54 | |||
| 100 | $ 37.36 | |||
| 250 | $ 36.27 | |||
Description
General part information
FPG.00.304 Series
4 Position Circular Connector Plug, Male Pins Solder Cup
