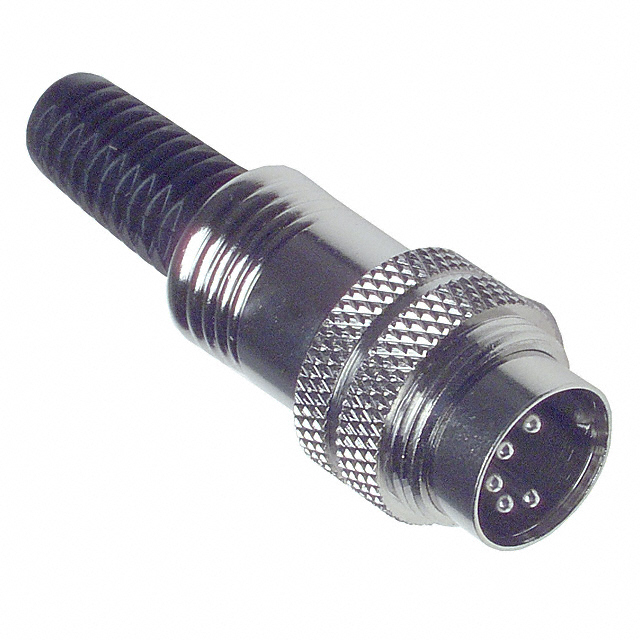

SD-50LP

Active

CUI Devices

CONN PLUG MALE DIN 5P SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PLUG MALE DIN 5P SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Color	Shell Material	Shell Size - Insert	Orientation	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Primary Material	Shell Finish	Contact Material	Material Flammability Rating	Fastening Type	Shielding	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)	Contact Finish - Mating	Features
CUI Devices SD-50BV	Solder	Silver	Iron Sheet	DIN	Keyed	Through Hole	-20 C	60 °C	24 VDC	Metal	Nickel	Brass	UL94 V-0	Push-Pull	Shielded	Receptacle Female Sockets
CUI Devices SD-50LP	Solder	Silver	Zinc Alloy	DIN	Keyed	Free Hanging (In-Line)	-40 °C	85 °C	100 VAC	Metal	Nickel	Brass			Shielded	Male Pins Plug	8 mm	0.315 in	2 A	Silver	Coupling Nut Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 3.60

General part information

5 Position Circular Connector Plug, Male Pins Solder
