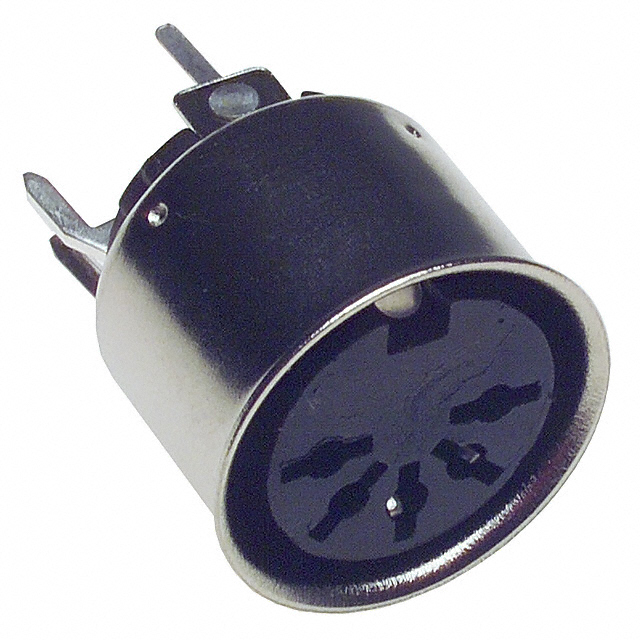

SD-50BV

Active

CUI Devices

CONN RCPT FMALE DIN 5POS SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT FMALE DIN 5POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SD-50BV

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Material	Brass
Fastening Type	Push-Pull
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Iron Sheet
Shell Size - Insert	DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	24 VDC

Part	Termination	Color	Shell Material	Shell Size - Insert	Orientation	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Primary Material	Shell Finish	Contact Material	Material Flammability Rating	Fastening Type	Shielding	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)	Contact Finish - Mating	Features
CUI Devices SD-50BV	Solder	Silver	Iron Sheet	DIN	Keyed	Through Hole	-20 C	60 °C	24 VDC	Metal	Nickel	Brass	UL94 V-0	Push-Pull	Shielded	Receptacle Female Sockets
CUI Devices SD-50LP	Solder	Silver	Zinc Alloy	DIN	Keyed	Free Hanging (In-Line)	-40 °C	85 °C	100 VAC	Metal	Nickel	Brass			Shielded	Male Pins Plug	8 mm	0.315 in	2 A	Silver	Coupling Nut Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder
