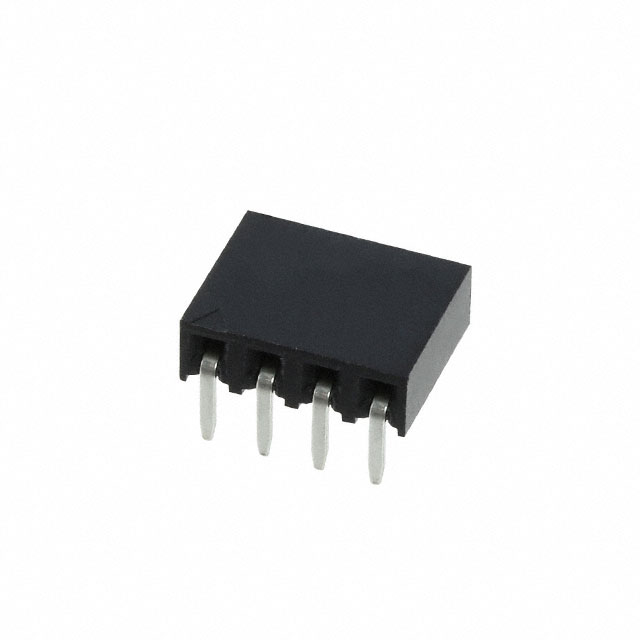

BOARD-TO-BOARD CONNECTOR, M20 SERIES, THROUGH HOLE, RECEPTACLE, 4, 2.54 MM, TIN PLATED CONTACTS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN Drawing EN +3

M20-7890446

Active

Harwin Inc.

BOARD-TO-BOARD CONNECTOR, M20 SERIES, THROUGH HOLE, RECEPTACLE, 4, 2.54 MM, TIN PLATED CONTACTS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsManufacturer Catalogue EN Drawing EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-7890446

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.13 in
Insulation Height	3.3 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	1000 VDC

M20-789 Series

Part	Termination	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Fastening Type	Contact Material	Insulation Height	Insulation Height	Contact Shape	Number of Positions Loaded	Current Rating (Amps)	Applications	Contact Type	Material Flammability Rating	Voltage Rating	Insulation Material	Style	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Mating
Harwin Inc. M20-7890846	Solder	0.118 in	3 mm	1	2.54 çm	100 çin	Black	Push-Pull	Phosphor Bronze	0.13 in	3.3 mm	Square	All	3 A	General Purpose Industrial Telecommunications	Female Socket	UL94 V-0	1000 VDC	Nylon 6T Polyamide (PA6T)	Board to Board Cable	Receptacle	-40 °C	105 ░C	Through Hole Right Angle	Tin	0.1 in	2.54 mm	8
Harwin Inc. M20-7890246	Solder	0.118 in	3 mm	1	2.54 çm	100 çin	Black	Push-Pull	Phosphor Bronze	0.13 in	3.3 mm	Square	All	3 A	General Purpose Industrial Telecommunications	Female Socket	UL94 V-0	1000 VDC	Nylon 6T Polyamide (PA6T)	Board to Board Cable	Receptacle	-40 °C	105 ░C	Through Hole Right Angle	Tin	0.1 in	2.54 mm	2
Harwin Inc. M20-7891442	Solder	0.118 in	3 mm	1			Black	Push-Pull	Phosphor Bronze	0.13 in	3.3 mm	Square	All	3 A	General Purpose Industrial Telecommunications	Female Socket	UL94 V-0	1000 VDC	Nylon 6T Polyamide (PA6T)	Board to Board Cable	Receptacle	-40 °C	105 ░C	Through Hole Right Angle	Tin	0.1 in	2.54 mm	14	Gold
Harwin Inc. M20-7891046	Solder	0.118 in	3 mm	1	2.54 çm	100 çin	Black	Push-Pull	Phosphor Bronze	0.13 in	3.3 mm	Square	All	3 A	General Purpose Industrial Telecommunications	Female Socket	UL94 V-0	1000 VDC	Nylon 6T Polyamide (PA6T)	Board to Board Cable	Receptacle	-40 °C	105 ░C	Through Hole Right Angle	Tin	0.1 in	2.54 mm	10
Harwin Inc. M20-7890642	Solder	0.118 in	3 mm	1			Black	Push-Pull	Phosphor Bronze	0.13 in	3.3 mm	Square	All	3 A	General Purpose Industrial Telecommunications	Female Socket	UL94 V-0	1000 VDC	Nylon 6T Polyamide (PA6T)	Board to Board Cable	Receptacle	-40 °C	105 ░C	Through Hole Right Angle	Tin	0.1 in	2.54 mm	6	Gold
Harwin Inc. M20-7892046	Solder	0.118 in	3 mm	1	2.54 çm	100 çin	Black	Push-Pull	Phosphor Bronze	0.13 in	3.3 mm	Square	All	3 A	General Purpose Industrial Telecommunications	Female Socket	UL94 V-0	1000 VDC	Nylon 6T Polyamide (PA6T)	Board to Board Cable	Receptacle	-40 °C	105 ░C	Through Hole Right Angle	Tin	0.1 in	2.54 mm	20
Harwin Inc. M20-7890546	Solder	0.118 in	3 mm	1	2.54 çm	100 çin	Black	Push-Pull	Phosphor Bronze	0.13 in	3.3 mm	Square	All	3 A	General Purpose Industrial Telecommunications	Female Socket	UL94 V-0	1000 VDC	Nylon 6T Polyamide (PA6T)	Board to Board Cable	Receptacle	-40 °C	105 ░C	Through Hole Right Angle	Tin	0.1 in	2.54 mm
Harwin Inc. M20-7890446	Solder	0.118 in	3 mm	1	2.54 çm	100 çin	Black	Push-Pull	Phosphor Bronze	0.13 in	3.3 mm	Square	All	3 A	General Purpose Industrial Telecommunications	Female Socket	UL94 V-0	1000 VDC	Nylon 6T Polyamide (PA6T)	Board to Board Cable	Receptacle	-40 °C	105 ░C	Through Hole Right Angle	Tin	0.1 in	2.54 mm	4
Harwin Inc. M20-7890542	Solder	0.118 in	3 mm	1			Black	Push-Pull	Phosphor Bronze	0.13 in	3.3 mm	Square	All	3 A	General Purpose Industrial Telecommunications	Female Socket	UL94 V-0	1000 VDC	Nylon 6T Polyamide (PA6T)	Board to Board Cable	Receptacle	-40 °C	105 ░C	Through Hole Right Angle	Tin	0.1 in	2.54 mm		Gold
Harwin Inc. M20-7890646	Solder	0.118 in	3 mm	1	2.54 çm	100 çin	Black	Push-Pull	Phosphor Bronze	0.13 in	3.3 mm	Square	All	3 A	General Purpose Industrial Telecommunications	Female Socket	UL94 V-0	1000 VDC	Nylon 6T Polyamide (PA6T)	Board to Board Cable	Receptacle	-40 °C	105 ░C	Through Hole Right Angle	Tin	0.1 in	2.54 mm	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.33
		58	$ 1.05
		116	$ 1.01
		522	$ 0.82
		1044	$ 0.73
		5046	$ 0.64
		10034	$ 0.61
Newark	Each	1	$ 1.37
		10	$ 1.20
		100	$ 1.07
		250	$ 0.97
		500	$ 0.89
		1000	$ 0.82
		2500	$ 0.77
		5000	$ 0.72

Description

General part information

M20-789 Series

4 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin

Documents

Technical documentation and resources

Manufacturer Catalogue EN

Datasheet

Drawing EN

Datasheet

M20-003

M20 Series Spec Sheet

Datasheet
