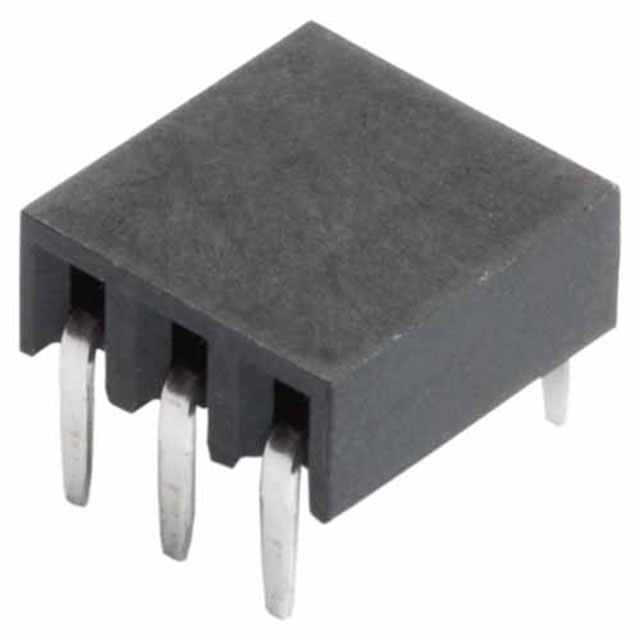

BOARD CONNECTOR, 6 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, SOCKET, LEAD FREE
Deep-Dive with AI
Search across all available documentation for this part.
M20-7890646
ActiveHarwin Inc.
BOARD CONNECTOR, 6 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, SOCKET, LEAD FREE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M20-7890646 |
|---|---|
| Applications | Industrial, General Purpose, Telecommunications |
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.13 in |
| Insulation Height | 3.3 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 1000 VDC |
M20-789 Series
| Part | Termination | Contact Length - Post | Contact Length - Post | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Fastening Type | Contact Material | Insulation Height | Insulation Height | Contact Shape | Number of Positions Loaded | Current Rating (Amps) | Applications | Contact Type | Material Flammability Rating | Voltage Rating | Insulation Material | Style | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Solder | 0.118 in | 3 mm | 1 | 2.54 çm | 100 çin | Black | Push-Pull | Phosphor Bronze | 0.13 in | 3.3 mm | Square | All | 3 A | General Purpose Industrial Telecommunications | Female Socket | UL94 V-0 | 1000 VDC | Nylon 6T Polyamide (PA6T) | Board to Board Cable | Receptacle | -40 °C | 105 ░C | Through Hole Right Angle | Tin | 0.1 in | 2.54 mm | 8 | |
Harwin Inc. | Solder | 0.118 in | 3 mm | 1 | 2.54 çm | 100 çin | Black | Push-Pull | Phosphor Bronze | 0.13 in | 3.3 mm | Square | All | 3 A | General Purpose Industrial Telecommunications | Female Socket | UL94 V-0 | 1000 VDC | Nylon 6T Polyamide (PA6T) | Board to Board Cable | Receptacle | -40 °C | 105 ░C | Through Hole Right Angle | Tin | 0.1 in | 2.54 mm | 2 | |
Harwin Inc. | Solder | 0.118 in | 3 mm | 1 | Black | Push-Pull | Phosphor Bronze | 0.13 in | 3.3 mm | Square | All | 3 A | General Purpose Industrial Telecommunications | Female Socket | UL94 V-0 | 1000 VDC | Nylon 6T Polyamide (PA6T) | Board to Board Cable | Receptacle | -40 °C | 105 ░C | Through Hole Right Angle | Tin | 0.1 in | 2.54 mm | 14 | Gold | ||
Harwin Inc. | Solder | 0.118 in | 3 mm | 1 | 2.54 çm | 100 çin | Black | Push-Pull | Phosphor Bronze | 0.13 in | 3.3 mm | Square | All | 3 A | General Purpose Industrial Telecommunications | Female Socket | UL94 V-0 | 1000 VDC | Nylon 6T Polyamide (PA6T) | Board to Board Cable | Receptacle | -40 °C | 105 ░C | Through Hole Right Angle | Tin | 0.1 in | 2.54 mm | 10 | |
Harwin Inc. | Solder | 0.118 in | 3 mm | 1 | Black | Push-Pull | Phosphor Bronze | 0.13 in | 3.3 mm | Square | All | 3 A | General Purpose Industrial Telecommunications | Female Socket | UL94 V-0 | 1000 VDC | Nylon 6T Polyamide (PA6T) | Board to Board Cable | Receptacle | -40 °C | 105 ░C | Through Hole Right Angle | Tin | 0.1 in | 2.54 mm | 6 | Gold | ||
Harwin Inc. | Solder | 0.118 in | 3 mm | 1 | 2.54 çm | 100 çin | Black | Push-Pull | Phosphor Bronze | 0.13 in | 3.3 mm | Square | All | 3 A | General Purpose Industrial Telecommunications | Female Socket | UL94 V-0 | 1000 VDC | Nylon 6T Polyamide (PA6T) | Board to Board Cable | Receptacle | -40 °C | 105 ░C | Through Hole Right Angle | Tin | 0.1 in | 2.54 mm | 20 | |
Harwin Inc. | Solder | 0.118 in | 3 mm | 1 | 2.54 çm | 100 çin | Black | Push-Pull | Phosphor Bronze | 0.13 in | 3.3 mm | Square | All | 3 A | General Purpose Industrial Telecommunications | Female Socket | UL94 V-0 | 1000 VDC | Nylon 6T Polyamide (PA6T) | Board to Board Cable | Receptacle | -40 °C | 105 ░C | Through Hole Right Angle | Tin | 0.1 in | 2.54 mm | ||
Harwin Inc. | Solder | 0.118 in | 3 mm | 1 | 2.54 çm | 100 çin | Black | Push-Pull | Phosphor Bronze | 0.13 in | 3.3 mm | Square | All | 3 A | General Purpose Industrial Telecommunications | Female Socket | UL94 V-0 | 1000 VDC | Nylon 6T Polyamide (PA6T) | Board to Board Cable | Receptacle | -40 °C | 105 ░C | Through Hole Right Angle | Tin | 0.1 in | 2.54 mm | 4 | |
Harwin Inc. | Solder | 0.118 in | 3 mm | 1 | Black | Push-Pull | Phosphor Bronze | 0.13 in | 3.3 mm | Square | All | 3 A | General Purpose Industrial Telecommunications | Female Socket | UL94 V-0 | 1000 VDC | Nylon 6T Polyamide (PA6T) | Board to Board Cable | Receptacle | -40 °C | 105 ░C | Through Hole Right Angle | Tin | 0.1 in | 2.54 mm | Gold | |||
Harwin Inc. | Solder | 0.118 in | 3 mm | 1 | 2.54 çm | 100 çin | Black | Push-Pull | Phosphor Bronze | 0.13 in | 3.3 mm | Square | All | 3 A | General Purpose Industrial Telecommunications | Female Socket | UL94 V-0 | 1000 VDC | Nylon 6T Polyamide (PA6T) | Board to Board Cable | Receptacle | -40 °C | 105 ░C | Through Hole Right Angle | Tin | 0.1 in | 2.54 mm | 6 |
