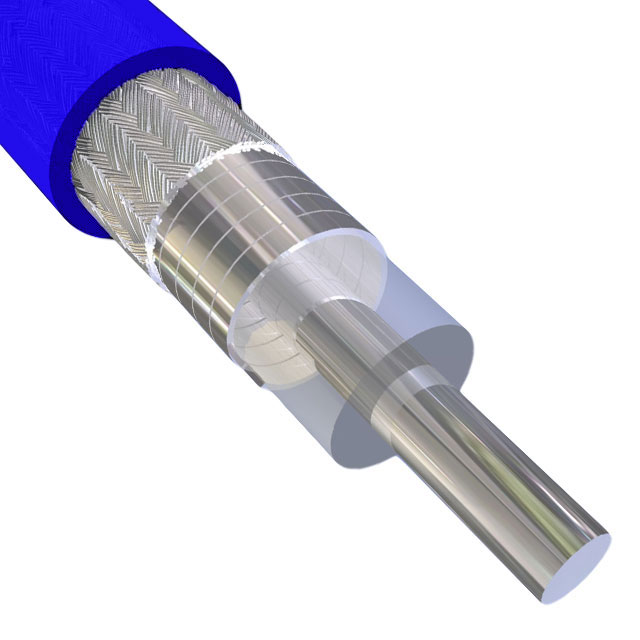

1000670032

Active

Molex - Temp Flex

CABLE COAXIAL 19AWG 1'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1000670032

Active

Molex - Temp Flex

CABLE COAXIAL 19AWG 1'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1000670032

Cable Type	Coaxial
Conductor Material	Copper, Silver Coated
Dielectric Diameter [diameter]	0.117 in
Dielectric Diameter [diameter]	2.97 mm
Dielectric Material	Fluorinated Ethylene-Propylene (FEP®)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.157 in
Jacket (Insulation) Diameter [diameter]	3.99 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Blue
Length [x]	1 ft, 100 ft
Length [x]	300 mm, 30.48 m
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Shield Coverage	100 %, 85 %
Shield Material	Copper, Silver Coated
Shield Type	Foil, Braid
VoP, Velocity of Propagation	70
Wire Gauge	19 AWG

100067 Series

Part	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Type	Dielectric Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	VoP, Velocity of Propagation	Shield Material	Impedance	Length [x]	Length [x]	Jacket (Insulation) Material	Shield Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Coverage	Jacket Color	Spool Size	Spool Size	Length
Molex - Temp Flex 1000670027	29 AWG	-65 ░C	165 °C	Copper Silver Coated	Coaxial	Fluorinated Ethylene-Propylene (FEP®)	1.42 mm	0.056 in	15.24 m	50 ft	70	Copper Silver Coated	50 Ohms	3.05 m	10 ft	Fluorinated Ethylene-Propylene (FEP)	Braid Foil	0.94 mm	0.037 in	90 % 100 %	Blue
Molex - Temp Flex 1000670032	19 AWG	-65 ░C	150 °C	Copper Silver Coated	Coaxial	Fluorinated Ethylene-Propylene (FEP®)	3.99 mm	0.157 in			70	Copper Silver Coated	50 Ohms	30.48 m 300 mm	1 ft 100 ft	Fluorinated Ethylene-Propylene (FEP)	Braid Foil	2.97 mm	0.117 in	85 % 100 %	Blue
Molex - Temp Flex 1000670031	24 AWG	-65 ░C	150 °C	Copper Silver Coated	Coaxial	Fluorinated Ethylene-Propylene (FEP®)	2.57 mm	0.101 "	7.62 m 15.24 m	25 ft 50 ft	70	Copper Silver Coated	50 Ohms	30.48 m 300 mm	1 ft 100 ft	Fluorinated Ethylene-Propylene (FEP)	Braid Foil	1.65 mm	0.065 "	90 % 100 %	Blue	5000 '	1524 m	Enter Number of Feet in Order Quantity
Molex - Temp Flex 1000671141	19 AWG	-65 ░C	165 °C	Copper Silver Coated	Coaxial	Perfluoroalkoxy (PFA)	4.01 mm	0.158 in	15.24 m 60.96 m	50 ft 200 '	70	Copper Silver Coated	50 Ohms	30.48 m	100 ft	Fluorinated Ethylene-Propylene Tinted (FEP)	Braid Foil	2.97 mm	0.117 in		Blue	5000 '	1524 m	Enter Number of Feet in Order Quantity
Molex - Temp Flex 1000671086	24 AWG	-65 ░C	165 °C	Copper Silver Coated	Coaxial	Perfluoroalkoxy (PFA)	2.57 mm	0.101 "	7.62 m 60.96 m	25 ft 200 '	70	Copper Silver Coated	50 Ohms	3.05 m 30.48 m	10 ft 100 ft	Fluorinated Ethylene-Propylene Tinted (FEP)	Braid Foil	1.65 mm	0.065 "			5000 '	1524 m	Enter Number of Feet in Order Quantity

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1451.62
		1	$ 8.44
		3	$ 1342.94
		3	$ 7.78
		5	$ 1296.37
		5	$ 7.50
		7	$ 7.35
		7	$ 1265.31
		10	$ 7.15
		25	$ 6.72
		50	$ 6.37
		100	$ 6.10

Description

General part information

100067 Series

Coaxial Cable 19 AWG 1.0' (0.30m) 50 Ohms
