307-008-431-102

Active

EDAC Inc.

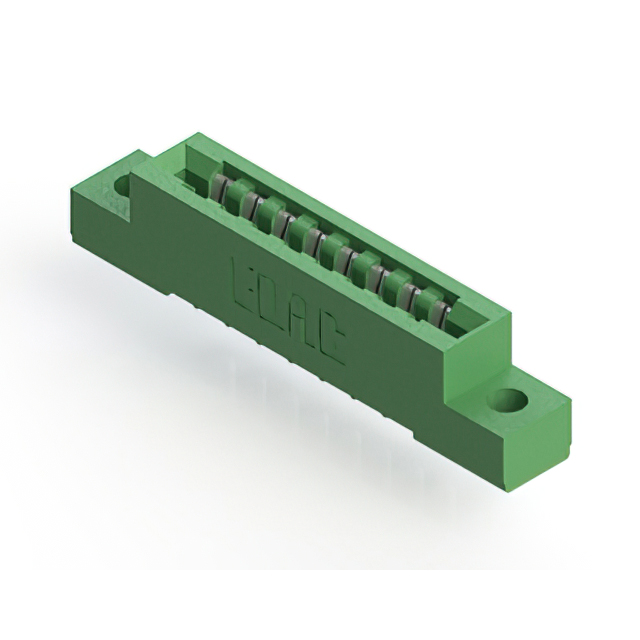

CARD EDGE CONNECTOR, 8 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

307-008-431-102

Active

EDAC Inc.

CARD EDGE CONNECTOR, 8 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-008-431-102

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

307-008 Series

...

Part	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Flange Feature	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Gender	Features	Contact Finish	Material - Insulation	Number of Positions	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Termination Rows	Pitch [x]	Pitch [x]	Contact Type	Card Type	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 307-008-553-168	Through Hole Right Angle	Solder	-40 °C	105 ░C	Copper Alloy	Green	4-40 Flush Mount Threaded Insert Top Opening	2	10 Áin	0.25 Ám	Female	Card Guides	Gold	Polyester Thermoplastic	16	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	1	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge
EDAC Inc. 307-008-554-158	Surface Mount	Solder Eyelet(s)	-40 °C	105 ░C	Copper Alloy	Green	4-40 Flush Mount Threaded Insert Top Opening	2	10 Áin	0.25 Ám	Female	Card Guides	Gold	Polyester Thermoplastic	16	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	1	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge
EDAC Inc. 307-008-431-102	Through Hole	Solder	-40 °C	105 ░C	Copper Alloy	Green	Flush Mount Top Opening Unthreaded	1			Female		Tin	Polyester Thermoplastic		8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	1	0.156 in	3.96 mm	Semi Bellows	Non Specified - Single Edge	8	3.25 mm	0.128 "
EDAC Inc. 307-008-558-101	Through Hole Right Angle	Solder	-40 °C	105 ░C	Copper Alloy	Green		1	10 Áin	0.25 Ám	Female		Gold	Polyester Thermoplastic		8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	1	0.156 in	3.96 mm	Semi Bellows	Non Specified - Single Edge	8
EDAC Inc. 307-008-554-108	Surface Mount	Solder Eyelet(s)	-40 °C	105 ░C	Copper Alloy	Green	4-40 Flush Mount Threaded Insert Top Opening	2	10 Áin	0.25 Ám	Female		Gold	Polyester Thermoplastic	16	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	1	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge
EDAC Inc. 307-008-445-103	Through Hole	Wire Wrap	-40 °C	105 ░C	Copper Alloy	Green	Floating Bobbin Flush Mount	1			Female		Tin	Polyester Thermoplastic		8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	1	0.156 in	3.96 mm	Semi Bellows	Non Specified - Single Edge	8	2.95 mm	0.116 in
EDAC Inc. 307-008-447-158	Through Hole	Wire Wrap	-40 °C	105 ░C	Copper Alloy	Green	4-40 Flush Mount Threaded Insert Top Opening	1			Female	Card Guides	Tin	Polyester Thermoplastic		8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	1	0.156 in	3.96 mm	Semi Bellows	Non Specified - Single Edge	8
EDAC Inc. 307-008-427-168	Through Hole	Solder	-40 °C	105 ░C	Copper Alloy	Green	4-40 Flush Mount Threaded Insert Top Opening	1			Female	Card Guides	Tin	Polyester Thermoplastic		8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	Single	1	0.156 in	3.96 mm	Semi Bellows	Non Specified - Single Edge	8
EDAC Inc. 307-008-441-168	Through Hole	Wire Wrap	-40 °C	105 ░C	Copper Alloy	Green	4-40 Flush Mount Threaded Insert Top Opening	2			Female	Card Guides	Tin	Polyester Thermoplastic	16	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	1	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge
EDAC Inc. 307-008-454-101	Through Hole Right Angle	Solder	-40 °C	105 ░C	Copper Alloy	Green		2			Female		Tin	Polyester Thermoplastic	16	8	8	8	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	1	0.156 in	3.96 mm	Semi Bellows	Non Specified - Dual Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 7.50
Newark	Each	25	$ 8.20
		50	$ 8.01
		100	$ 7.62
		250	$ 7.43
		500	$ 7.17

Description

General part information

307-008 Series

8 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Green
