307-008-554-158
ActiveEDAC Inc.

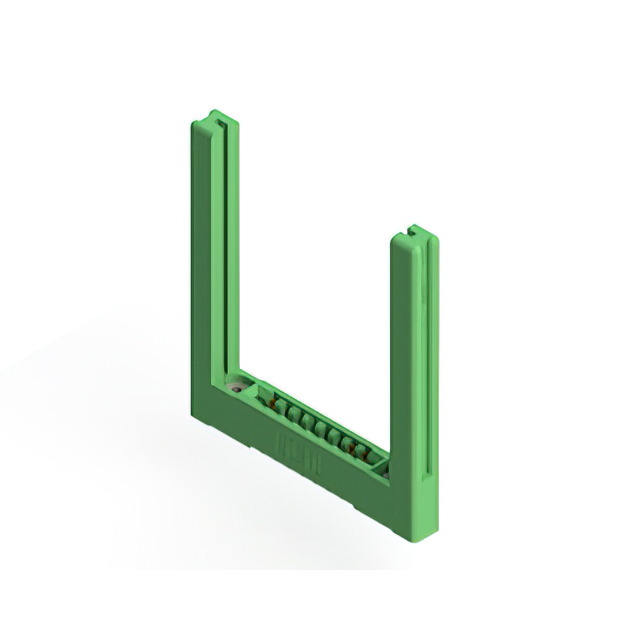

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 8 CONTACTS, PANEL MOUNT, RIGHT ANGLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-008-554-158 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
307-008 Series
...
| Part | Mounting Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Flange Feature | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Gender | Features | Contact Finish | Material - Insulation | Number of Positions | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Termination Rows | Pitch [x] | Pitch [x] | Contact Type | Card Type | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole Right Angle | Solder | -40 °C | 105 ░C | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | Female | Card Guides | Gold | Polyester Thermoplastic | 16 | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 1 | 0.156 in | 3.96 mm | Semi Bellows | Non Specified - Dual Edge | |||
EDAC Inc. | Surface Mount | Solder Eyelet(s) | -40 °C | 105 ░C | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | Female | Card Guides | Gold | Polyester Thermoplastic | 16 | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 1 | 0.156 in | 3.96 mm | Semi Bellows | Non Specified - Dual Edge | |||
EDAC Inc. | Through Hole | Solder | -40 °C | 105 ░C | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | 1 | Female | Tin | Polyester Thermoplastic | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 1 | 0.156 in | 3.96 mm | Semi Bellows | Non Specified - Single Edge | 8 | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Through Hole Right Angle | Solder | -40 °C | 105 ░C | Copper Alloy | Green | 1 | 10 Áin | 0.25 Ám | Female | Gold | Polyester Thermoplastic | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 1 | 0.156 in | 3.96 mm | Semi Bellows | Non Specified - Single Edge | 8 | |||||
EDAC Inc. | Surface Mount | Solder Eyelet(s) | -40 °C | 105 ░C | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 10 Áin | 0.25 Ám | Female | Gold | Polyester Thermoplastic | 16 | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 1 | 0.156 in | 3.96 mm | Semi Bellows | Non Specified - Dual Edge | ||||
EDAC Inc. | Through Hole | Wire Wrap | -40 °C | 105 ░C | Copper Alloy | Green | Floating Bobbin Flush Mount | 1 | Female | Tin | Polyester Thermoplastic | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 1 | 0.156 in | 3.96 mm | Semi Bellows | Non Specified - Single Edge | 8 | 2.95 mm | 0.116 in | ||||
EDAC Inc. | Through Hole | Wire Wrap | -40 °C | 105 ░C | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Female | Card Guides | Tin | Polyester Thermoplastic | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 1 | 0.156 in | 3.96 mm | Semi Bellows | Non Specified - Single Edge | 8 | |||||
EDAC Inc. | Through Hole | Solder | -40 °C | 105 ░C | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Female | Card Guides | Tin | Polyester Thermoplastic | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 1 | 0.156 in | 3.96 mm | Semi Bellows | Non Specified - Single Edge | 8 | |||||
EDAC Inc. | Through Hole | Wire Wrap | -40 °C | 105 ░C | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Female | Card Guides | Tin | Polyester Thermoplastic | 16 | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 1 | 0.156 in | 3.96 mm | Semi Bellows | Non Specified - Dual Edge | |||||
EDAC Inc. | Through Hole Right Angle | Solder | -40 °C | 105 ░C | Copper Alloy | Green | 2 | Female | Tin | Polyester Thermoplastic | 16 | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 1 | 0.156 in | 3.96 mm | Semi Bellows | Non Specified - Dual Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
307-008 Series
16 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
