UDA1380TT/N2,512

Obsolete

Freescale Semiconductor - NXP

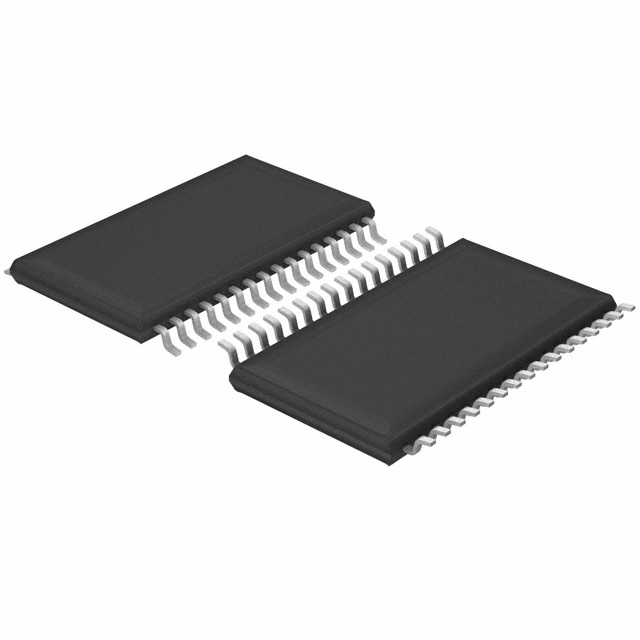

IC AUDIO CODER-DECODER 32-TSSOP

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

IC AUDIO CODER-DECODER 32-TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	UDA1380TT/N2,512

Data Interface	Serial, I2C
Mounting Type	Surface Mount
Number of ADCs / DACs [custom]	2
Number of ADCs / DACs [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	32-TSSOP
Resolution (Bits)	24 b
S/N Ratio, ADCs / DACs (db) Typ [custom]	97 db
S/N Ratio, ADCs / DACs (db) Typ [custom]	97 db
Sigma Delta	False
Supplier Device Package	32-TSSOP
Type	Stereo Audio
Voltage - Supply, Analog [Max]	3.6 V
Voltage - Supply, Analog [Min]	2.4 V
Voltage - Supply, Digital [Max]	3.6 V
Voltage - Supply, Digital [Min]	2.4 V

Part	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Supplier Device Package	Mounting Type	Resolution (Bits)	Data Interface	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]
Freescale Semiconductor - NXP UDA1380TT/N2,518	3.6 V	2.4 V	Stereo Audio	85 °C	-40 °C	32-TSSOP	2.4 V	3.6 V	32-TSSOP	Surface Mount	24 b	I2C Serial	97 db	97 db	2	2
Freescale Semiconductor - NXP UDA1380HN/N2,118	3.6 V	2.4 V	Stereo Audio	85 °C	-40 °C	32-VFQFN Exposed Pad	2.4 V	3.6 V	32-HVQFN (5x5)	Surface Mount	24 b	I2C Serial	97 db	97 db	2	2
Freescale Semiconductor - NXP UDA1380TT/N2,512	3.6 V	2.4 V	Stereo Audio	85 °C	-40 °C	32-TSSOP	2.4 V	3.6 V	32-TSSOP	Surface Mount	24 b	I2C Serial	97 db	97 db	2	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Stereo Audio Interface 24 b I2C, Serial 32-TSSOP
