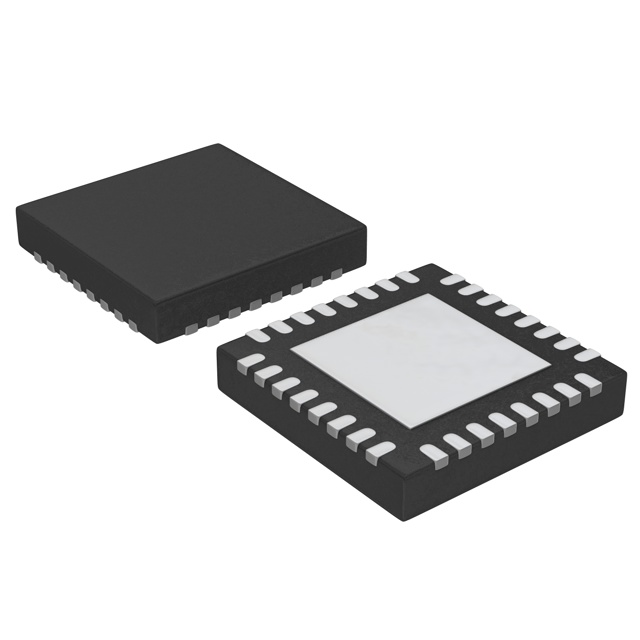

UDA1380HN/N2,118
ObsoleteFreescale Semiconductor - NXP
IC AUDIO CODEC MINIDISC 32HVQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UDA1380HN/N2,118
ObsoleteFreescale Semiconductor - NXP
IC AUDIO CODEC MINIDISC 32HVQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UDA1380HN/N2,118 |
|---|---|
| Data Interface | Serial, I2C |
| Mounting Type | Surface Mount |
| Number of ADCs / DACs [custom] | 2 |
| Number of ADCs / DACs [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 32-VFQFN Exposed Pad |
| Resolution (Bits) | 24 b |
| S/N Ratio, ADCs / DACs (db) Typ [custom] | 97 db |
| S/N Ratio, ADCs / DACs (db) Typ [custom] | 97 db |
| Sigma Delta | False |
| Supplier Device Package | 32-HVQFN (5x5) |
| Type | Stereo Audio |
| Voltage - Supply, Analog [Max] | 3.6 V |
| Voltage - Supply, Analog [Min] | 2.4 V |
| Voltage - Supply, Digital [Max] | 3.6 V |
| Voltage - Supply, Digital [Min] | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UDA138 Series
Stereo Audio Interface 24 b I2C, Serial 32-HVQFN (5x5)
