5082-7651

Active

Broadcom Limited

7 SEGMENT LED DISPLAY, RED, 20 MA, 2.1 V, 1.115 MCD, 1, 10.9 MM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5082-7651

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.43 in
Digit/Alpha Size	11 mm
Display Type	7-Segment
Millicandela Rating	1.12 mcd
Number of Characters [custom]	1
Power Dissipation (Max) [Max]	105 mW
Size / Dimension [y]	0.5 in
Size / Dimension [y]	12.7 mm
Size / Dimension [z]	0.75 in, 0.25 "
Size / Dimension [z]	19.05 mm
Size / Dimension [z]	6.35 mm
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Peak	635 nm

5082-76 Series

Part	Wavelength - Peak	Number of Characters [custom]	Power Dissipation (Max) [Max]	Millicandela Rating	Color	Digit/Alpha Size	Digit/Alpha Size	Display Type	Common Pin	Voltage - Forward (Vf) (Typ)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Test	Number of Characters	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Package / Case
Broadcom Limited 5082-7650	635 nm	1	105 mW	1.12 mcd	Red	0.43 in	11 mm	7-Segment	Common Anode	2.1 V	0.25 " 0.75 in	0.5 in	12.7 mm	19.05 mm	6.35 mm	20 mA
Broadcom Limited 5082-7653-DD000	635 nm	1	105 mW	1.12 mcd	Red	0.43 in	11 mm	7-Segment	Common Cathode	2.1 V	0.25 " 0.75 in	0.5 in	12.7 mm	19.05 mm	6.35 mm	20 mA
Broadcom Limited 5082-7616	635 nm		105 mW	0.8 mcd	Red	0.3 in	7.62 mm	7-Segment	Universal	2.1 V	0.18 "	0.4 in		4.57 mm		20 mA	+/-1 (overflow)	0.75 in	19.05 mm	10.16 mm	0.3 in	7.62 mm	12 Leads 14-DIP
Broadcom Limited 5082-7610-CD000	635 nm	1	105 mW	0.8 mcd	Red	0.3 in	7.62 mm	7-Segment	Common Anode	2.1 V	0.18 "	0.4 in		4.57 mm		20 mA		0.75 in	19.05 mm	10.16 mm
Broadcom Limited 5082-7663	583 nm	1	80 mW	0.84 mcd	Yellow	0.43 in	11 mm	7-Segment	Common Cathode	2.2 V	0.25 " 0.75 in	0.5 in	12.7 mm	19.05 mm	6.35 mm	20 mA
Broadcom Limited 5082-7611-DE000	635 nm	1	105 mW	0.8 mcd	Red	0.3 in	7.62 mm	7-Segment	Common Anode	2.1 V	0.18 "	0.4 in		4.57 mm		20 mA		0.75 in	19.05 mm	10.16 mm
Broadcom Limited 5082-7620	583 nm	1	80 mW	0.62 mcd	Yellow	0.3 in	7.62 mm	7-Segment	Common Anode	2.2 V	0.18 "	0.4 in		4.57 mm		20 mA		0.75 in	19.05 mm	10.16 mm
Broadcom Limited 5082-7651	635 nm	1	105 mW	1.12 mcd	Red	0.43 in	11 mm	7-Segment	Common Anode	2.1 V	0.25 " 0.75 in	0.5 in	12.7 mm	19.05 mm	6.35 mm	20 mA
Broadcom Limited 5082-7651-DE000	635 nm	1	105 mW	1.12 mcd	Red	0.43 in	11 mm	7-Segment	Common Anode	2.1 V	0.25 " 0.75 in	0.5 in	12.7 mm	19.05 mm	6.35 mm	20 mA
Broadcom Limited 5082-7653	635 nm	1	105 mW	1.12 mcd	Red	0.43 in	11 mm	7-Segment	Common Cathode	2.1 V	0.25 " 0.75 in	0.5 in	12.7 mm	19.05 mm	6.35 mm	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.18
		25	$ 3.20
		100	$ 2.78
		500	$ 2.45
		1000	$ 2.35
		2000	$ 2.27

Description

General part information

5082-76 Series

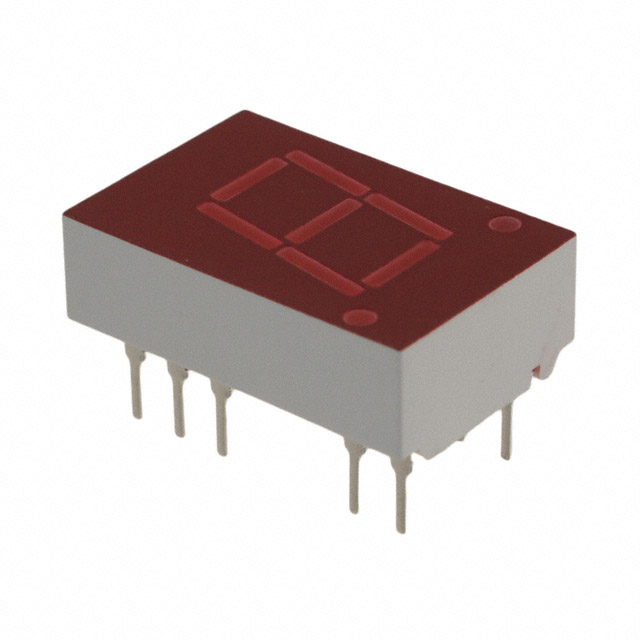

The 5082-7651 is a 10.9mm common anode right hand decimal LED 7-segment Display designed for viewing distances up to 3 and 5m. This device uses an industry standard size package and pin-out.
