5082-7653

Active

Broadcom Limited

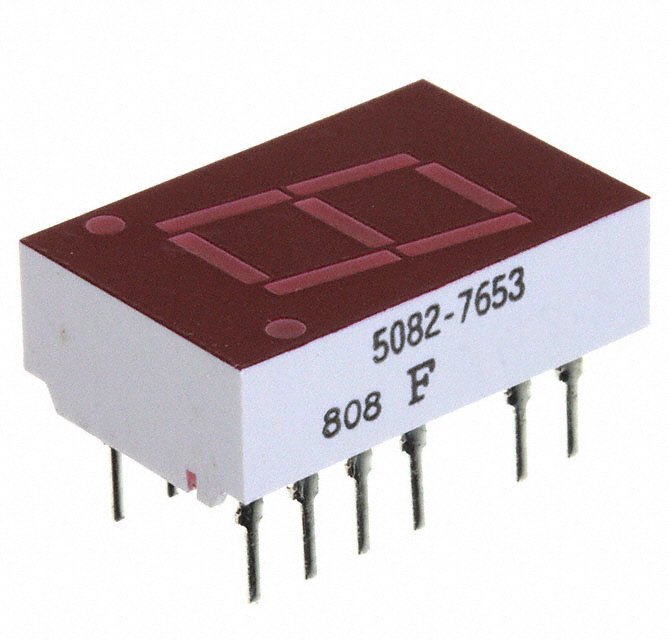

DISPLAY 7SEG 0.43" SGL RED 14DIP

Deep-Dive with AI

Search across all available documentation for this part.

5082-7653

Active

Broadcom Limited

DISPLAY 7SEG 0.43" SGL RED 14DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5082-7653

Color	Red
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	0.43 in
Digit/Alpha Size	11 mm
Display Type	7-Segment
Millicandela Rating	1.12 mcd
Number of Characters [custom]	1
Power Dissipation (Max) [Max]	105 mW
Size / Dimension [y]	0.5 in
Size / Dimension [y]	12.7 mm
Size / Dimension [z]	0.75 in, 0.25 "
Size / Dimension [z]	19.05 mm
Size / Dimension [z]	6.35 mm
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Peak	635 nm

5082-76 Series

Part	Wavelength - Peak	Number of Characters [custom]	Power Dissipation (Max) [Max]	Millicandela Rating	Color	Digit/Alpha Size	Digit/Alpha Size	Display Type	Common Pin	Voltage - Forward (Vf) (Typ)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Test	Number of Characters	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Package / Case
Broadcom Limited 5082-7650	635 nm	1	105 mW	1.12 mcd	Red	0.43 in	11 mm	7-Segment	Common Anode	2.1 V	0.25 " 0.75 in	0.5 in	12.7 mm	19.05 mm	6.35 mm	20 mA
Broadcom Limited 5082-7653-DD000	635 nm	1	105 mW	1.12 mcd	Red	0.43 in	11 mm	7-Segment	Common Cathode	2.1 V	0.25 " 0.75 in	0.5 in	12.7 mm	19.05 mm	6.35 mm	20 mA
Broadcom Limited 5082-7616	635 nm		105 mW	0.8 mcd	Red	0.3 in	7.62 mm	7-Segment	Universal	2.1 V	0.18 "	0.4 in		4.57 mm		20 mA	+/-1 (overflow)	0.75 in	19.05 mm	10.16 mm	0.3 in	7.62 mm	12 Leads 14-DIP
Broadcom Limited 5082-7610-CD000	635 nm	1	105 mW	0.8 mcd	Red	0.3 in	7.62 mm	7-Segment	Common Anode	2.1 V	0.18 "	0.4 in		4.57 mm		20 mA		0.75 in	19.05 mm	10.16 mm
Broadcom Limited 5082-7663	583 nm	1	80 mW	0.84 mcd	Yellow	0.43 in	11 mm	7-Segment	Common Cathode	2.2 V	0.25 " 0.75 in	0.5 in	12.7 mm	19.05 mm	6.35 mm	20 mA
Broadcom Limited 5082-7611-DE000	635 nm	1	105 mW	0.8 mcd	Red	0.3 in	7.62 mm	7-Segment	Common Anode	2.1 V	0.18 "	0.4 in		4.57 mm		20 mA		0.75 in	19.05 mm	10.16 mm
Broadcom Limited 5082-7620	583 nm	1	80 mW	0.62 mcd	Yellow	0.3 in	7.62 mm	7-Segment	Common Anode	2.2 V	0.18 "	0.4 in		4.57 mm		20 mA		0.75 in	19.05 mm	10.16 mm
Broadcom Limited 5082-7651	635 nm	1	105 mW	1.12 mcd	Red	0.43 in	11 mm	7-Segment	Common Anode	2.1 V	0.25 " 0.75 in	0.5 in	12.7 mm	19.05 mm	6.35 mm	20 mA
Broadcom Limited 5082-7651-DE000	635 nm	1	105 mW	1.12 mcd	Red	0.43 in	11 mm	7-Segment	Common Anode	2.1 V	0.25 " 0.75 in	0.5 in	12.7 mm	19.05 mm	6.35 mm	20 mA
Broadcom Limited 5082-7653	635 nm	1	105 mW	1.12 mcd	Red	0.43 in	11 mm	7-Segment	Common Cathode	2.1 V	0.25 " 0.75 in	0.5 in	12.7 mm	19.05 mm	6.35 mm	20 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.73
		10	$ 3.51
		200	$ 2.64
		600	$ 2.45
		1000	$ 2.38
		2000	$ 2.29

Description

General part information

5082-76 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2.1V 20mA 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) 14-DIP (0.300", 7.62mm), 11 Leads
