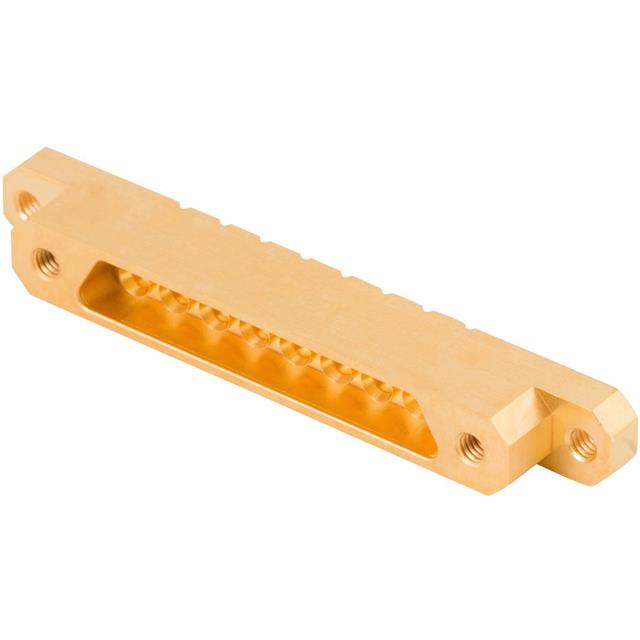

9311-60128

Active

Amphenol SV Microwave

RF / COAXIAL CONNECTOR, 8 PORT, PCB SURFACE MOUNT, MINI D RF, STRAIGHT PLUG, SURFACE MOUNT VERTICAL

Search across all available documentation for this part.

Active

Amphenol SV Microwave

RF / COAXIAL CONNECTOR, 8 PORT, PCB SURFACE MOUNT, MINI D RF, STRAIGHT PLUG, SURFACE MOUNT VERTICAL

Technical Specifications

Parameters and characteristics for this part

Part	Dielectric Material	Connector Type	Number of Positions	Contact Material	Mounting Type	Connector Style	Termination	Contact Finish	Color	Number of Rows	Shell Material, Finish	Contact Type	Flange Feature
Amphenol SV Microwave 9311-60112	Polytetrafluoroethylene (PTFE)	Receptacle Female Sockets	8	Beryllium Copper	Board Edge Right Angle Surface Mount	D-Sub	Solder	Gold	Gold	1	Steel	Coax	Housing/Shell (Unthreaded)
Amphenol SV Microwave 9311-60128		Receptacle Female Sockets	8	Beryllium Copper	Surface Mount	D-Sub	Solder	Gold	Gold	1	Steel	Coax	Housing/Shell (Unthreaded)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (Coax) Position D-Sub Receptacle, Female Sockets Connector
