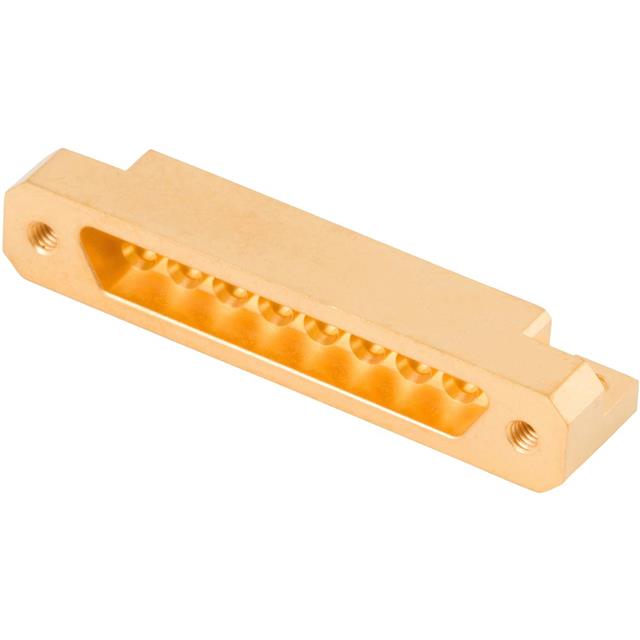

9311-60112

Active

Amphenol SV Microwave

RF / COAXIAL CONNECTOR, 8 PORT, PCB, MINI D RF, EDGE LAUNCH PLUG, 50 OHM, BERYLLIUM COPPER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

RF / COAXIAL CONNECTOR, 8 PORT, PCB, MINI D RF, EDGE LAUNCH PLUG, 50 OHM, BERYLLIUM COPPER

Technical Specifications

Parameters and characteristics for this part

Specification	9311-60112

Color	Gold
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Type	Coax
Dielectric Material	Polytetrafluoroethylene (PTFE)
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Board Edge, Right Angle, Surface Mount
Number of Positions	8
Number of Rows	1
Shell Material, Finish	Steel
Termination	Solder

Part	Dielectric Material	Connector Type	Number of Positions	Contact Material	Mounting Type	Connector Style	Termination	Contact Finish	Color	Number of Rows	Shell Material, Finish	Contact Type	Flange Feature
Amphenol SV Microwave 9311-60112	Polytetrafluoroethylene (PTFE)	Receptacle Female Sockets	8	Beryllium Copper	Board Edge Right Angle Surface Mount	D-Sub	Solder	Gold	Gold	1	Steel	Coax	Housing/Shell (Unthreaded)
Amphenol SV Microwave 9311-60128		Receptacle Female Sockets	8	Beryllium Copper	Surface Mount	D-Sub	Solder	Gold	Gold	1	Steel	Coax	Housing/Shell (Unthreaded)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position D-Sub Receptacle, Female Sockets Connector
