0393740904
ActiveMolex

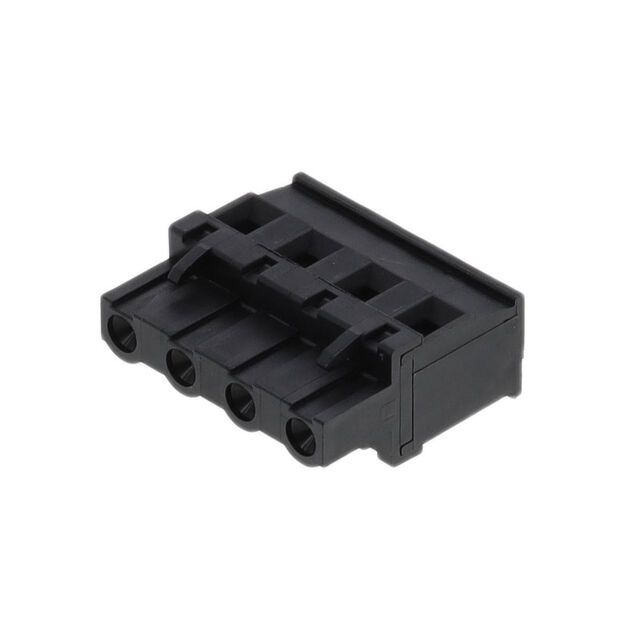

TERM BLOCK PLUG 4POS 90DEG 7.5MM
Deep-Dive with AI
Search across all available documentation for this part.
0393740904
ActiveMolex
TERM BLOCK PLUG 4POS 90DEG 7.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0393740904 |
|---|---|
| Color | Black |
| Contact Material | Phosphor Bronze |
| Contact Mating Finish | Tin |
| Features | Retention Latches (Wire Side) |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height | 25 mm |
| Insulation Height | 0.984 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Temperature | 110 °C |
| Pitch [x] | 0.295 in |
| Pitch [x] | 7.5 mm |
| Plug Wire Entry | 90 ° |
| Positions Per Level | 4 |
| Termination Style | Screw - Rising Cage Clamp |
| Type | Plug, Female Sockets |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 30 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
039374 Series
| Part | Operating Temperature | Voltage - UL | Mounting Type | Number of Positions | Contact Mating Finish | Type | Plug Wire Entry | Contact Material | Insulation Height | Insulation Height | Positions Per Level | Number of Levels | Termination Style | Housing Material | Pitch [x] | Pitch [x] | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Material Flammability Rating | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 110 °C | 300 V | Free Hanging (In-Line) | 11 | Tin | Plug Female Sockets | 270 ° | Phosphor Bronze | 25 mm | 0.984 in | 11 | 1 | Screw - Rising Cage Clamp | Polyamide (PA) Nylon | 0.295 in | 7.5 mm | 30 AWG | 12 AWG | UL94 V-0 | Black | |
Molex | 110 °C | 300 V | Free Hanging (In-Line) | 7 | Tin | Plug Female Sockets | 90 ° | Phosphor Bronze | 25 mm | 0.984 in | 7 | 1 | Screw - Rising Cage Clamp | Polyamide (PA) Nylon | 0.295 in | 7.5 mm | 30 AWG | 12 AWG | UL94 V-0 | Black | Retention Latches (Wire Side) |
Molex | 110 °C | 300 V | Free Hanging (In-Line) | Tin | Plug Female Sockets | 90 ° | Phosphor Bronze | 25 mm | 0.984 in | 5 | 1 | Screw - Rising Cage Clamp | Polyamide (PA) Nylon | 0.295 in | 7.5 mm | 30 AWG | 12 AWG | UL94 V-0 | Black | Retention Latches (Wire Side) | |
Molex | 110 °C | 300 V | Free Hanging (In-Line) | 9 | Tin | Plug Female Sockets | 270 ° | Phosphor Bronze | 25 mm | 0.984 in | 9 | 1 | Screw - Rising Cage Clamp | Polyamide (PA) Nylon | 0.295 in | 7.5 mm | 30 AWG | 12 AWG | UL94 V-0 | Black | |
Molex | 110 °C | 300 V | Free Hanging (In-Line) | 10 | Tin | Plug Female Sockets | 90 ° | Phosphor Bronze | 25 mm | 0.984 in | 10 | 1 | Screw - Rising Cage Clamp | Polyamide (PA) Nylon | 0.295 in | 7.5 mm | 30 AWG | 12 AWG | UL94 V-0 | Black | Retention Latches (Wire Side) |
Molex | 110 °C | 300 V | Free Hanging (In-Line) | Tin | Plug Female Sockets | 270 ° | Phosphor Bronze | 25 mm | 0.984 in | 5 | 1 | Screw - Rising Cage Clamp | Polyamide (PA) Nylon | 0.295 in | 7.5 mm | 30 AWG | 12 AWG | UL94 V-0 | Black | ||
Molex | 110 °C | 300 V | Free Hanging (In-Line) | Tin | Plug Female Sockets | 90 ° | Phosphor Bronze | 25 mm | 0.984 in | 3 | 1 | Screw - Rising Cage Clamp | Polyamide (PA) Nylon | 0.295 in | 7.5 mm | 30 AWG | 12 AWG | UL94 V-0 | Black | Retention Latches (Wire Side) | |
Molex | 110 °C | 300 V | Free Hanging (In-Line) | 6 | Tin | Plug Female Sockets | 90 ° | Phosphor Bronze | 25 mm | 0.984 in | 6 | 1 | Screw - Rising Cage Clamp | Polyamide (PA) Nylon | 0.295 in | 7.5 mm | 30 AWG | 12 AWG | UL94 V-0 | Black | Retention Latches (Wire Side) |
Molex | 110 °C | 300 V | Free Hanging (In-Line) | 4 | Tin | Plug Female Sockets | 90 ° | Phosphor Bronze | 25 mm | 0.984 in | 4 | 1 | Screw - Rising Cage Clamp | Polyamide (PA) Nylon | 0.295 in | 7.5 mm | 30 AWG | 12 AWG | UL94 V-0 | Black | Retention Latches (Wire Side) |
Molex | 110 °C | 300 V | Free Hanging (In-Line) | 2 | Tin | Plug Female Sockets | 90 ° | Phosphor Bronze | 25 mm | 0.984 in | 2 | 1 | Screw - Rising Cage Clamp | Polyamide (PA) Nylon | 0.295 in | 7.5 mm | 30 AWG | 12 AWG | UL94 V-0 | Black | Retention Latches (Wire Side) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.62 | |
| 10 | $ 1.68 | |||
| 25 | $ 1.49 | |||
| 50 | $ 1.39 | |||
| 100 | $ 1.32 | |||
| 250 | $ 1.31 | |||
Description
General part information
039374 Series
4 Position Terminal Block Plug, Female Sockets 0.295" (7.50mm) 90° Free Hanging (In-Line)
Documents
Technical documentation and resources
No documents available
