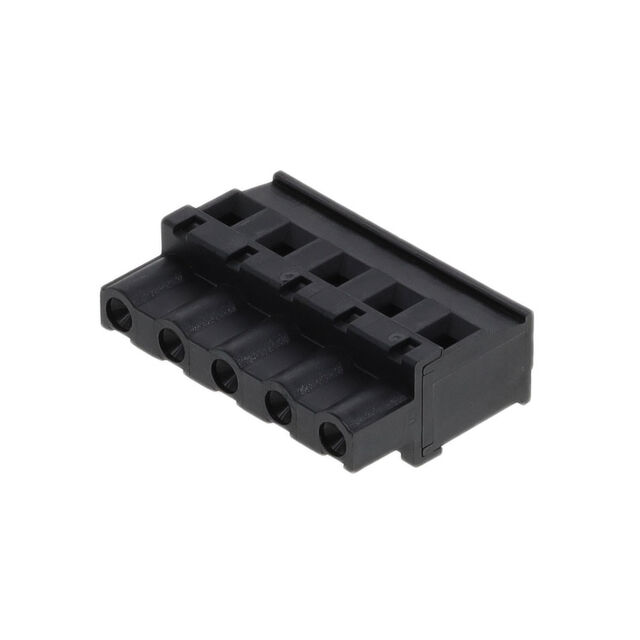

0393740905

Active

Molex

TERM BLOCK PLUG 5POS 90DEG 7.5MM

Deep-Dive with AI

Search across all available documentation for this part.

0393740905

Active

Molex

TERM BLOCK PLUG 5POS 90DEG 7.5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0393740905

Color	Black
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Features	Retention Latches (Wire Side)
Housing Material	Polyamide (PA), Nylon
Insulation Height	25 mm
Insulation Height	0.984 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature	110 °C
Pitch [x]	0.295 in
Pitch [x]	7.5 mm
Plug Wire Entry	90 °
Positions Per Level	5
Termination Style	Screw - Rising Cage Clamp
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG

039374 Series

Part	Operating Temperature	Voltage - UL	Mounting Type	Number of Positions	Contact Mating Finish	Type	Plug Wire Entry	Contact Material	Insulation Height	Insulation Height	Positions Per Level	Number of Levels	Termination Style	Housing Material	Pitch [x]	Pitch [x]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Material Flammability Rating	Color	Features
Molex 0393740811	110 °C	300 V	Free Hanging (In-Line)	11	Tin	Plug Female Sockets	270 °	Phosphor Bronze	25 mm	0.984 in	11	1	Screw - Rising Cage Clamp	Polyamide (PA) Nylon	0.295 in	7.5 mm	30 AWG	12 AWG	UL94 V-0	Black
Molex 0393740907	110 °C	300 V	Free Hanging (In-Line)	7	Tin	Plug Female Sockets	90 °	Phosphor Bronze	25 mm	0.984 in	7	1	Screw - Rising Cage Clamp	Polyamide (PA) Nylon	0.295 in	7.5 mm	30 AWG	12 AWG	UL94 V-0	Black	Retention Latches (Wire Side)
Molex 0393740905	110 °C	300 V	Free Hanging (In-Line)		Tin	Plug Female Sockets	90 °	Phosphor Bronze	25 mm	0.984 in	5	1	Screw - Rising Cage Clamp	Polyamide (PA) Nylon	0.295 in	7.5 mm	30 AWG	12 AWG	UL94 V-0	Black	Retention Latches (Wire Side)
Molex 0393740809	110 °C	300 V	Free Hanging (In-Line)	9	Tin	Plug Female Sockets	270 °	Phosphor Bronze	25 mm	0.984 in	9	1	Screw - Rising Cage Clamp	Polyamide (PA) Nylon	0.295 in	7.5 mm	30 AWG	12 AWG	UL94 V-0	Black
Molex 0393740910	110 °C	300 V	Free Hanging (In-Line)	10	Tin	Plug Female Sockets	90 °	Phosphor Bronze	25 mm	0.984 in	10	1	Screw - Rising Cage Clamp	Polyamide (PA) Nylon	0.295 in	7.5 mm	30 AWG	12 AWG	UL94 V-0	Black	Retention Latches (Wire Side)
Molex 0393740805	110 °C	300 V	Free Hanging (In-Line)		Tin	Plug Female Sockets	270 °	Phosphor Bronze	25 mm	0.984 in	5	1	Screw - Rising Cage Clamp	Polyamide (PA) Nylon	0.295 in	7.5 mm	30 AWG	12 AWG	UL94 V-0	Black
Molex 0393740903	110 °C	300 V	Free Hanging (In-Line)		Tin	Plug Female Sockets	90 °	Phosphor Bronze	25 mm	0.984 in	3	1	Screw - Rising Cage Clamp	Polyamide (PA) Nylon	0.295 in	7.5 mm	30 AWG	12 AWG	UL94 V-0	Black	Retention Latches (Wire Side)
Molex 0393740906	110 °C	300 V	Free Hanging (In-Line)	6	Tin	Plug Female Sockets	90 °	Phosphor Bronze	25 mm	0.984 in	6	1	Screw - Rising Cage Clamp	Polyamide (PA) Nylon	0.295 in	7.5 mm	30 AWG	12 AWG	UL94 V-0	Black	Retention Latches (Wire Side)
Molex 0393740904	110 °C	300 V	Free Hanging (In-Line)	4	Tin	Plug Female Sockets	90 °	Phosphor Bronze	25 mm	0.984 in	4	1	Screw - Rising Cage Clamp	Polyamide (PA) Nylon	0.295 in	7.5 mm	30 AWG	12 AWG	UL94 V-0	Black	Retention Latches (Wire Side)
Molex 0393740902	110 °C	300 V	Free Hanging (In-Line)	2	Tin	Plug Female Sockets	90 °	Phosphor Bronze	25 mm	0.984 in	2	1	Screw - Rising Cage Clamp	Polyamide (PA) Nylon	0.295 in	7.5 mm	30 AWG	12 AWG	UL94 V-0	Black	Retention Latches (Wire Side)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.05
		10	$ 2.01
		25	$ 1.81
		50	$ 1.69
		100	$ 1.63

Description

General part information

039374 Series

5 Position Terminal Block Plug, Female Sockets 0.295" (7.50mm) 90° Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available
