IPRF-UB-J03P0G23-R0

Active

Sure-Seal

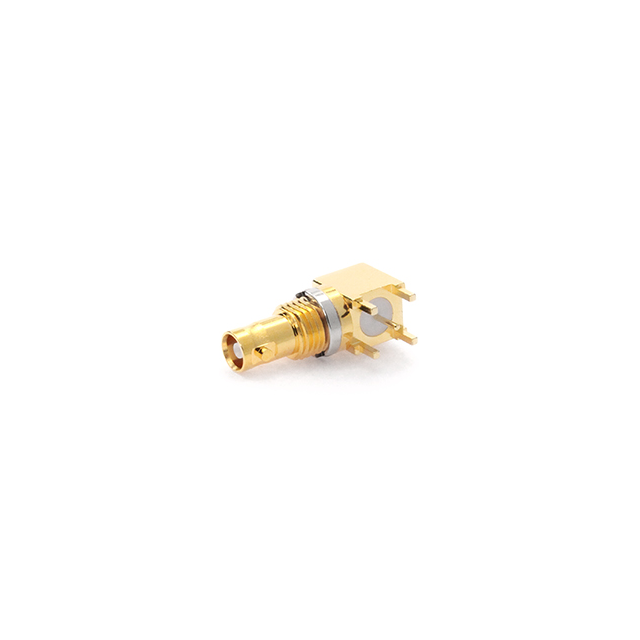

ULTRA TINY BNC R/A BH JACK

Search across all available documentation for this part.

Active

Sure-Seal

ULTRA TINY BNC R/A BH JACK

Technical Specifications

Parameters and characteristics for this part

Specification	IPRF-UB-J03P0G23-R0

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	12 GHz
Housing Color	Gold
Impedance	75 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Frequency - Max [Max]	Connector Style	Ingress Protection	Connector Type	Contact Termination	Number of Ports	Voltage Rating	Body Finish	Mounting Type	Center Contact Material	Shield Termination	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Dielectric Material	Center Contact Plating	Impedance	Housing Color	Mounting Feature	Fastening Type
Sure-Seal IPRF-HB-J18P0N01-AT-R	12 GHz	BNC	IP68 - Dust Tight Waterproof	Female Socket Jack	Crimp	1
Sure-Seal IPRF-S-P01P0G27-M	12.4 GHz	SMA	IP68 - Dust Tight Waterproof	Male Pin Plug	Crimp	1	500 V	Gold	Free Hanging (In-Line)	Brass	Crimp	188 316 Belden 7805A LMR-100 RG-174 URM95	-65 ░C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Gold
Sure-Seal IPRF-UB-J03P0G23-R0	12 GHz	BNC	IP68 - Dust Tight Waterproof	Female Socket Jack	Solder	1	500 V	Gold		Beryllium Copper	Solder		-65 ░C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	Gold	75 Ohms	Gold	Bulkhead - Front Side Nut	Bayonet Lock
Sure-Seal IPRF-MM-J11A0G29	6000 MHz	MMCX	IP68 - Dust Tight Waterproof	Female Socket Jack	Solder	1	170 V	Gold	Through Hole Right Angle	Beryllium Copper	Solder		-55 °C	155 °C	Brass	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Gold		Snap-On
Sure-Seal IPRF-N-J24A0N01-M-5		N Type	IP68 - Dust Tight Waterproof	Female Socket Jack		1														Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount Solder
