IPRF-N-J24A0N01-M-5

Active

Sure-Seal

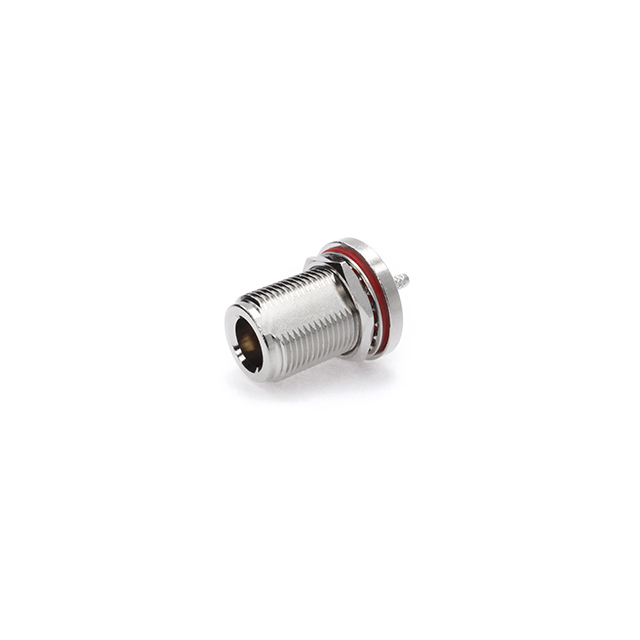

N TYPE BULKHEAD JACK

Search across all available documentation for this part.

Active

Sure-Seal

N TYPE BULKHEAD JACK

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Max [Max]	Connector Style	Ingress Protection	Connector Type	Contact Termination	Number of Ports	Voltage Rating	Body Finish	Mounting Type	Center Contact Material	Shield Termination	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Dielectric Material	Center Contact Plating	Impedance	Housing Color	Mounting Feature	Fastening Type
Sure-Seal IPRF-HB-J18P0N01-AT-R	12 GHz	BNC	IP68 - Dust Tight Waterproof	Female Socket Jack	Crimp	1
Sure-Seal IPRF-S-P01P0G27-M	12.4 GHz	SMA	IP68 - Dust Tight Waterproof	Male Pin Plug	Crimp	1	500 V	Gold	Free Hanging (In-Line)	Brass	Crimp	188 316 Belden 7805A LMR-100 RG-174 URM95	-65 ░C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Gold
Sure-Seal IPRF-UB-J03P0G23-R0	12 GHz	BNC	IP68 - Dust Tight Waterproof	Female Socket Jack	Solder	1	500 V	Gold		Beryllium Copper	Solder		-65 ░C	165 °C	Brass	Polytetrafluoroethylene (PTFE)	Gold	75 Ohms	Gold	Bulkhead - Front Side Nut	Bayonet Lock
Sure-Seal IPRF-MM-J11A0G29	6000 MHz	MMCX	IP68 - Dust Tight Waterproof	Female Socket Jack	Solder	1	170 V	Gold	Through Hole Right Angle	Beryllium Copper	Solder		-55 °C	155 °C	Brass	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	Gold		Snap-On
Sure-Seal IPRF-N-J24A0N01-M-5		N Type	IP68 - Dust Tight Waterproof	Female Socket Jack		1														Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Jack, Female Socket Panel Mount
