681M7W2103L001

Active

MH Connectors

COMBINATION D SUB CONNECTOR, DA-7W2, PLUG, 5, 2, THROUGH HOLE, DA ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +2

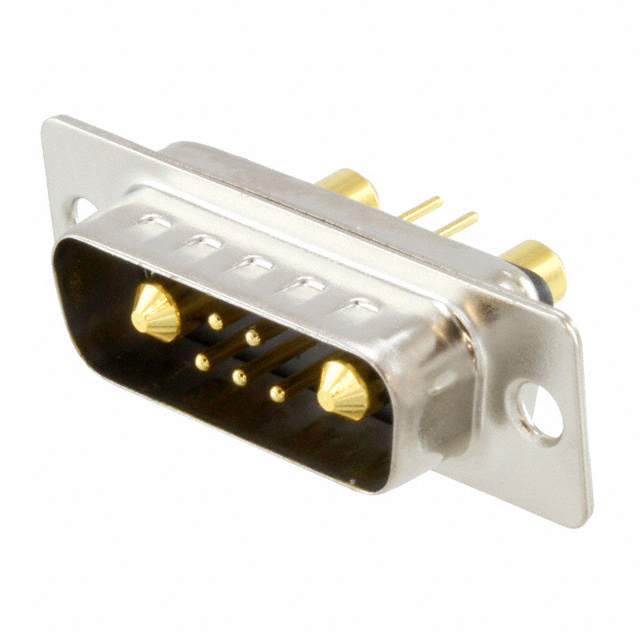

681M7W2103L001

Active

MH Connectors

COMBINATION D SUB CONNECTOR, DA-7W2, PLUG, 5, 2, THROUGH HOLE, DA ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	681M7W2103L001

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 7W2
Termination	Solder

681M7W2 Series

Part	Contact Material	Features	Dielectric Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Material Flammability Rating	Contact Finish	Color	Termination	Number of Positions [custom]	Number of Positions [custom]	Flange Feature	Connector Type	Shell Size, Connector Layout	Connector Style	Current Rating (Amps)	Shell Material, Finish	Contact Finish Thickness	Number of Rows	Voltage Rating
MH Connectors 681M7W2103L011	Copper Alloy	Grounding Indents	Polybutylene Terephthalate (PBT)	Signal and Power	-55 °C	125 °C	Panel Mount Through Hole	UL94 V-0	Gold	Black	Solder	7	2	4-40 Board Side	Male Pins Plug	2 (DA A) - 7W2	Combo D-Sub	5 A 40 A	Nickel Plated Steel	Flash	2
MH Connectors 681M7W2203L141	Copper Alloy		Polybutylene Terephthalate (PBT)	Signal and Power	-55 °C	125 °C	Panel Mount Through Hole	UL94 V-0	Gold	Black	Solder	7	2	4-40 Board Side	Receptacle Female Sockets	2 (DA A) - 7W2	Combo D-Sub	5 A 40 A	Nickel Plated Steel	Flash	2	250 VDC
MH Connectors 681M7W2103L101	Copper Alloy	Grounding Indents	Polybutylene Terephthalate (PBT)	Signal and Power	-55 °C	125 °C	Panel Mount Through Hole	UL94 V-0	Gold	Black	Solder	7	2	Housing/Shell (Unthreaded)	Male Pins Plug	2 (DA A) - 7W2	Combo D-Sub	5 A 40 A	Nickel Plated Steel	Flash	2	250 VDC
MH Connectors 681M7W2203L001	Copper Alloy		Polybutylene Terephthalate (PBT)	Signal and Power	-55 °C	125 °C	Panel Mount Through Hole	UL94 V-0	Gold	Black	Solder	7	2	Housing/Shell (Unthreaded)	Receptacle Female Sockets	2 (DA A) - 7W2	Combo D-Sub	5 A 40 A	Nickel Plated Steel	Flash	2
MH Connectors 681M7W2103L001	Copper Alloy	Grounding Indents	Polybutylene Terephthalate (PBT)	Signal and Power	-55 °C	155 °C	Panel Mount Through Hole	UL94 V-0	Gold	Black	Solder	7	2	Housing/Shell (Unthreaded)	Male Pins Plug	2 (DA A) - 7W2	Combo D-Sub	5 A 40 A	Nickel Plated Steel	Flash	2
MH Connectors 681M7W2103L151	Copper Alloy	Board Lock Grounding Indents	Polybutylene Terephthalate (PBT)	Signal and Power	-55 °C	125 °C	Panel Mount Through Hole	UL94 V-0	Gold	Black	Solder	7	2	4-40 Board Side	Male Pins Plug	2 (DA A) - 7W2	Combo D-Sub	5 A 40 A	Nickel Plated Steel	Flash	2	250 VDC
