681M7W2103L011
ActiveMH Connectors

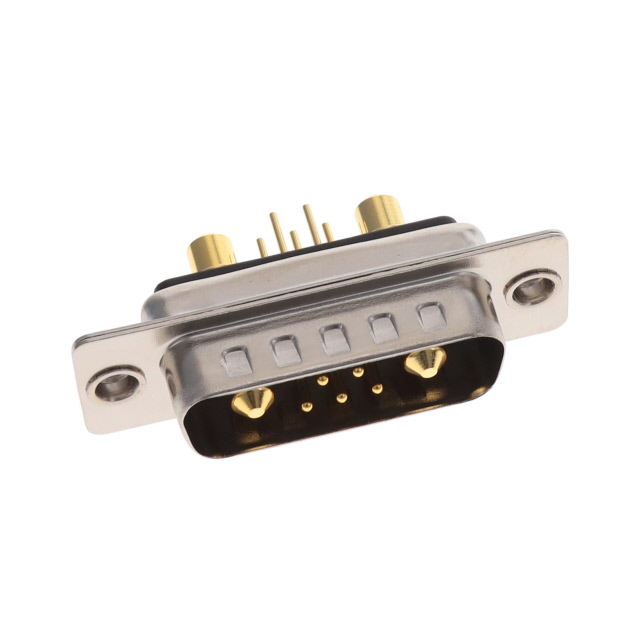

COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 681M SERIES, DA-7W2, PLUG, 7 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
681M7W2103L011
ActiveMH Connectors
COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 681M SERIES, DA-7W2, PLUG, 7 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 681M7W2103L011 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 7 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
| Termination | Solder |
