0348250242

Active

Molex

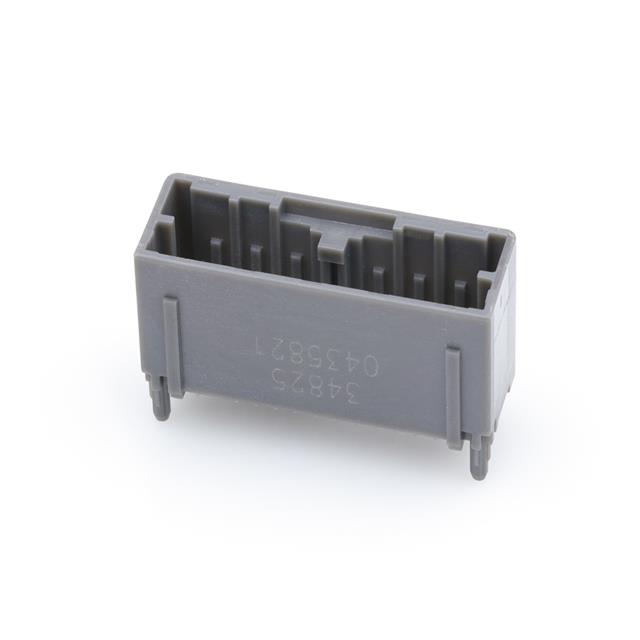

CONN HEADER VERT 24POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

0348250242

Active

Molex

CONN HEADER VERT 24POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0348250242

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.55 mm
Contact Length - Mating	0.218 in
Contact Length - Post	0.113 in
Contact Length - Post	2.87 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Solder Retention, Board Guide
Insulation Color	Gray
Insulation Height	0.614 "
Insulation Height	15.6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

034825 Series

Part	Shrouding	Number of Positions Loaded	Fastening Type	Number of Rows	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Connector Type	Contact Material	Applications	Mounting Type	Style	Termination	Contact Type	Contact Shape	Number of Positions	Insulation Height	Insulation Height	Features	Contact Length - Mating	Contact Length - Mating	Insulation Color	Number of Positions
Molex 0348258241	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	24	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray
Molex 0348250161	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square		0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray	16
Molex 0348258201	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	20	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray
Molex 0348258161	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square		0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray	16
Molex 0348250241	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	24	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray
Molex 0348258162	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square		0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray	16
Molex 0348258125	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	12	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray
Molex 0348259241	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	24	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray
Molex 0348250242	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	24	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray
Molex 0348250240	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	24	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.32
		10	$ 2.92
		360	$ 2.32
		1080	$ 1.92
		5040	$ 1.72

Description

General part information

034825 Series

Connector Header Through Hole 24 position 0.079" (2.00mm)

Documents

Technical documentation and resources

No documents available
