0348258201

Active

Molex

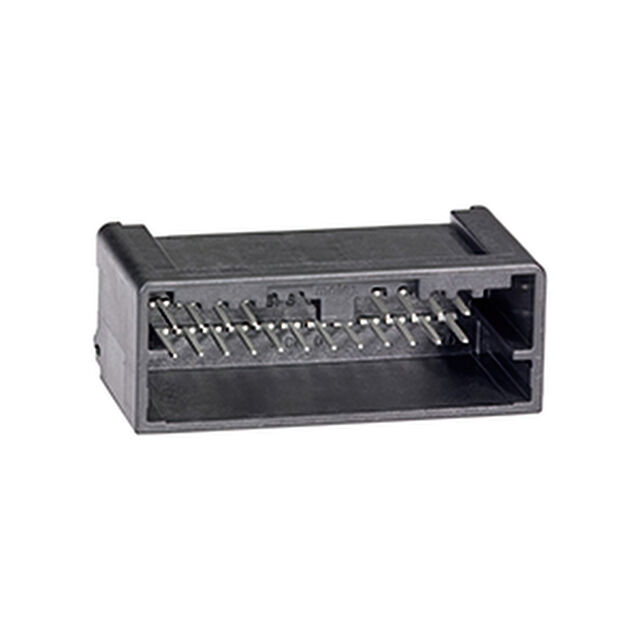

CONN HEADER VERT 20POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0348258201

Active

Molex

CONN HEADER VERT 20POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0348258201

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.55 mm
Contact Length - Mating	0.218 in
Contact Length - Post	0.113 in
Contact Length - Post	2.87 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Solder Retention, Board Guide
Insulation Color	Gray
Insulation Height	0.614 "
Insulation Height	15.6 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

034825 Series

Part	Shrouding	Number of Positions Loaded	Fastening Type	Number of Rows	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Connector Type	Contact Material	Applications	Mounting Type	Style	Termination	Contact Type	Contact Shape	Number of Positions	Insulation Height	Insulation Height	Features	Contact Length - Mating	Contact Length - Mating	Insulation Color	Number of Positions
Molex 0348258241	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	24	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray
Molex 0348250161	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square		0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray	16
Molex 0348258201	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	20	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray
Molex 0348258161	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square		0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray	16
Molex 0348250241	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	24	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray
Molex 0348258162	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square		0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray	16
Molex 0348258125	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	12	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray
Molex 0348259241	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	24	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray
Molex 0348250242	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	24	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Gray
Molex 0348250240	Shrouded - 4 Wall	All	Latch Holder	2	UL94 V-0	0.079 in	2 mm	Tin	0.113 in	2.87 mm	Header	Brass	Automotive	Through Hole	Board to Cable/Wire	Solder	Male Pin	Square	24	0.614 "	15.6 mm	Board Guide Solder Retention	5.55 mm	0.218 in	Black
