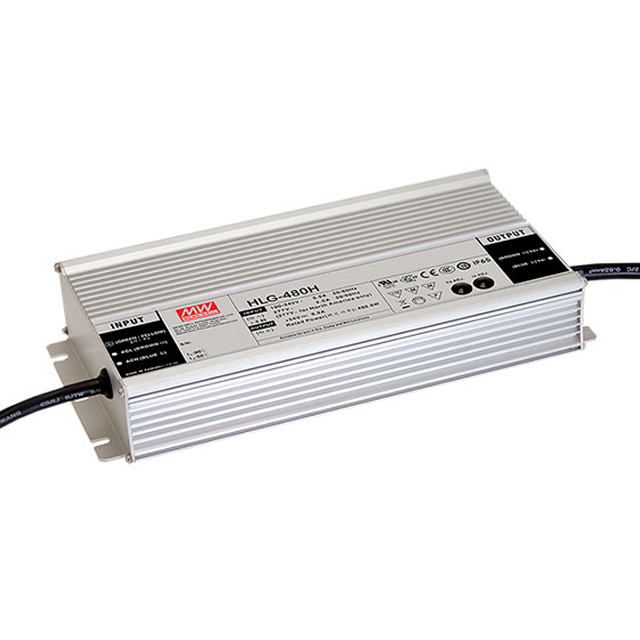

HLG-480H-36A
ActiveMEAN WELL USA Inc.
LED DRVR CC/CV AC/DC 30.6-37.8V
Deep-Dive with AI
Search across all available documentation for this part.
HLG-480H-36A
ActiveMEAN WELL USA Inc.
LED DRVR CC/CV AC/DC 30.6-37.8V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HLG-480H-36A |
|---|---|
| Approval Agency | cURus, CE, ENEC, CB, CCC |
| Current - Output (Max) [Max] | 13.3 A |
| Efficiency | 95.5 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 479 W |
| Ratings | IP65 |
| Size / Dimension [x] | 9.26 in |
| Size / Dimension [x] | 235.2 mm |
| Size / Dimension [y] | 4.92 in |
| Size / Dimension [y] | 125 mm |
| Size / Dimension [z] | 43.8 mm |
| Size / Dimension [z] | 1.72 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 37.8 V |
| Voltage - Output [Min] | 30.6 V |
HLG-480H Series
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Features | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Ratings | Number of Outputs | Efficiency | Type | Power (Watts) | Approval Agency | Voltage - Isolation | Voltage - Output [Max] | Voltage - Output [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current - Output (Max) [Max] | Topology | Current - Output (Max) | Dimming | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | Chassis Mount | 90 °C | -40 °C | Wire Leads | OCP OTP OVP SCP | 305 VAC | 90 VAC | IP67 | 1 | 95.5 % | Constant Current Voltage | 479 W | CB CCC CE cURus ENEC | 3750 V | 36 V | 18 V | 4.92 in | 43.8 mm | 1.72 in | 9.26 in | 235.2 mm | 125 mm | 13.3 A | AC DC Converter | |||
MEAN WELL USA Inc. | Chassis Mount | 90 °C | -40 °C | Wire Leads | OTP OVP SCP | 305 VAC | 90 VAC | IP67 | 1 | 95 % | Constant Current | 479 W | CB CCC CE cURus ENEC RCM | 3750 V | 171 V | 85 V | 4.92 in | 43.8 mm | 1.72 in | 9.26 in | 235.2 mm | 125 mm | AC DC Converter | 2.8 A | |||
MEAN WELL USA Inc. | Chassis Mount | 90 °C | -40 °C | Wire Leads | OTP OVP SCP | 305 VAC | 90 VAC | IP65 | 1 | 95 % | Constant Current | 479 W | CB CCC CE cURus ENEC | 3750 V | 171 V | 85 V | 4.92 in | 43.8 mm | 1.72 in | 9.26 in | 235.2 mm | 125 mm | AC DC Converter | 2.8 A | |||
MEAN WELL USA Inc. | Chassis Mount | 90 °C | -40 °C | Wire Leads | OCP OTP OVP SCP | 305 VAC | 90 VAC | IP67 | 1 | 95.5 % | Constant Current Voltage | 479 W | CB CCC CE cURus ENEC | 3750 V | 42 V | 21 V | 4.92 in | 43.8 mm | 1.72 in | 9.26 in | 235.2 mm | 125 mm | 11.4 A | AC DC Converter | Analog PWM | ||
MEAN WELL USA Inc. | Chassis Mount | 80 C | -40 °C | Wire Leads | OTP OVP SCP | 305 VAC | 90 VAC | IP67 | 1 | 95 % | Constant Current | 480 W | CB CCC CE cURus ENEC | 3750 V | 274 V | 137 V | 4.92 in | 43.8 mm | 1.72 in | 9.26 in | 235.2 mm | 125 mm | 1.75 A | AC DC Converter | Analog PWM | ||
MEAN WELL USA Inc. | Chassis Mount | 90 °C | -40 °C | Wire Leads | OCP OTP OVP SCP | 305 VAC | 90 VAC | IP65 | 1 | 95 % | Constant Current Voltage | 480 W | CB CCC CE cURus EAC ENEC KC PSE RCM | 3750 V | 4.92 in | 43.8 mm | 1.72 in | 9.26 in | 235.2 mm | 125 mm | 10 A | AC DC Converter | 48 V | ||||
MEAN WELL USA Inc. | Chassis Mount | 90 °C | -40 °C | Wire Leads | OCP OTP OVP SCP | 305 VAC | 90 VAC | IP67 | 1 | 94.5 % | Constant Current Voltage | 480 W | CB CCC CE cURus EAC ENEC KC PSE RCM | 3750 V | 4.92 in | 43.8 mm | 1.72 in | 9.26 in | 235.2 mm | 125 mm | 20 A | AC DC Converter | 24 V | ||||
MEAN WELL USA Inc. | Chassis Mount | 90 °C | -40 °C | Wire Leads | OCP OTP OVP SCP | 305 VAC | 90 VAC | IP65 | 1 | 95 % | Constant Current Voltage | 480 W | CB CCC CE cURus EAC ENEC KC PSE RCM | 3750 V | 4.92 in | 43.8 mm | 1.72 in | 9.26 in | 235.2 mm | 125 mm | 16 A | AC DC Converter | 30 VDC | ||||
MEAN WELL USA Inc. | Chassis Mount | 90 °C | -40 °C | Wire Leads | OCP OTP OVP SCP | 305 VAC | 90 VAC | IP65 | 1 | 95.5 % | Constant Current Voltage | 479 W | CB CCC CE cURus ENEC | 3750 V | 37.8 V | 30.6 V | 4.92 in | 43.8 mm | 1.72 in | 9.26 in | 235.2 mm | 125 mm | 13.3 A | AC DC Converter | |||
MEAN WELL USA Inc. | Chassis Mount | 90 °C | -40 °C | Wire Leads | OCP OTP OVP SCP | 305 VAC | 90 VAC | IP67 | 1 | 95 % | Constant Current Voltage | 480 W | CB CCC CE cURus ENEC | 3750 V | 48 V | 24 V | 4.92 in | 43.8 mm | 1.72 in | 9.26 in | 235.2 mm | 125 mm | 10 A | AC DC Converter | Analog PWM |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 160.36 | |
| 5 | $ 146.61 | |||
| 10 | $ 141.05 | |||
| 25 | $ 134.01 | |||
Description
General part information
HLG-480H Series
13.3A 30.6 ~ 37.8V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
