HLG-480H-C2800A

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 85-171V 2.8A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

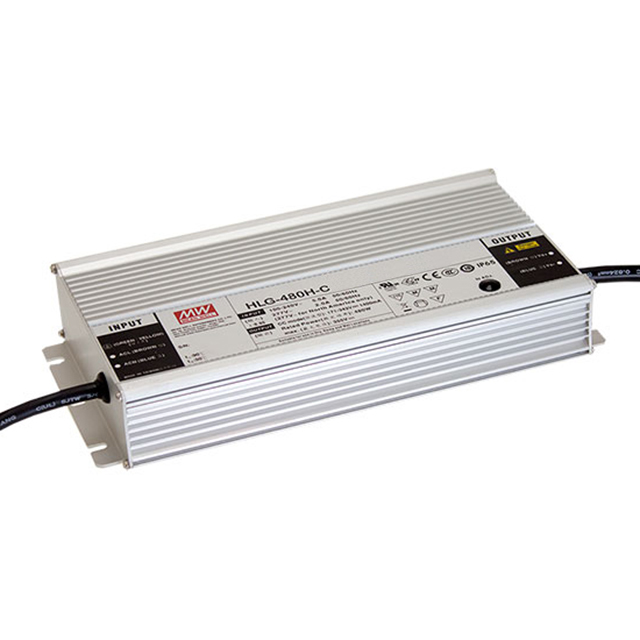

HLG-480H-C2800A

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 85-171V 2.8A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLG-480H-C2800A

Approval Agency	cURus, CE, ENEC, CB, CCC
Current - Output (Max)	2.8 A
Efficiency	95 %
Features	OTP, OVP, SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	479 W
Ratings	IP65
Size / Dimension [x]	9.26 in
Size / Dimension [x]	235.2 mm
Size / Dimension [y]	4.92 in
Size / Dimension [y]	125 mm
Size / Dimension [z]	43.8 mm
Size / Dimension [z]	1.72 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	171 V
Voltage - Output [Min]	85 V

HLG-480H Series

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Features	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Ratings	Number of Outputs	Efficiency	Type	Power (Watts)	Approval Agency	Voltage - Isolation	Voltage - Output [Max]	Voltage - Output [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Topology	Current - Output (Max)	Dimming	Voltage - Output
MEAN WELL USA Inc. HLG-480H-36	Chassis Mount	90 °C	-40 °C	Wire Leads	OCP OTP OVP SCP	305 VAC	90 VAC	IP67	1	95.5 %	Constant Current Voltage	479 W	CB CCC CE cURus ENEC	3750 V	36 V	18 V	4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm	13.3 A	AC DC Converter
MEAN WELL USA Inc. HLG-480H-C2800D2	Chassis Mount	90 °C	-40 °C	Wire Leads	OTP OVP SCP	305 VAC	90 VAC	IP67	1	95 %	Constant Current	479 W	CB CCC CE cURus ENEC RCM	3750 V	171 V	85 V	4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm		AC DC Converter	2.8 A
MEAN WELL USA Inc. HLG-480H-C2800A	Chassis Mount	90 °C	-40 °C	Wire Leads	OTP OVP SCP	305 VAC	90 VAC	IP65	1	95 %	Constant Current	479 W	CB CCC CE cURus ENEC	3750 V	171 V	85 V	4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm		AC DC Converter	2.8 A
MEAN WELL USA Inc. HLG-480H-42B	Chassis Mount	90 °C	-40 °C	Wire Leads	OCP OTP OVP SCP	305 VAC	90 VAC	IP67	1	95.5 %	Constant Current Voltage	479 W	CB CCC CE cURus ENEC	3750 V	42 V	21 V	4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm	11.4 A	AC DC Converter		Analog PWM
MEAN WELL USA Inc. HLG-480H-C1750B	Chassis Mount	80 C	-40 °C	Wire Leads	OTP OVP SCP	305 VAC	90 VAC	IP67	1	95 %	Constant Current	480 W	CB CCC CE cURus ENEC	3750 V	274 V	137 V	4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm	1.75 A	AC DC Converter		Analog PWM
MEAN WELL USA Inc. HLG-480H-48AB	Chassis Mount	90 °C	-40 °C	Wire Leads	OCP OTP OVP SCP	305 VAC	90 VAC	IP65	1	95 %	Constant Current Voltage	480 W	CB CCC CE cURus EAC ENEC KC PSE RCM	3750 V			4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm	10 A	AC DC Converter			48 V
MEAN WELL USA Inc. HLG-480H-24D2	Chassis Mount	90 °C	-40 °C	Wire Leads	OCP OTP OVP SCP	305 VAC	90 VAC	IP67	1	94.5 %	Constant Current Voltage	480 W	CB CCC CE cURus EAC ENEC KC PSE RCM	3750 V			4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm	20 A	AC DC Converter			24 V
MEAN WELL USA Inc. HLG-480H-30AB	Chassis Mount	90 °C	-40 °C	Wire Leads	OCP OTP OVP SCP	305 VAC	90 VAC	IP65	1	95 %	Constant Current Voltage	480 W	CB CCC CE cURus EAC ENEC KC PSE RCM	3750 V			4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm	16 A	AC DC Converter			30 VDC
MEAN WELL USA Inc. HLG-480H-36A	Chassis Mount	90 °C	-40 °C	Wire Leads	OCP OTP OVP SCP	305 VAC	90 VAC	IP65	1	95.5 %	Constant Current Voltage	479 W	CB CCC CE cURus ENEC	3750 V	37.8 V	30.6 V	4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm	13.3 A	AC DC Converter
MEAN WELL USA Inc. HLG-480H-48B	Chassis Mount	90 °C	-40 °C	Wire Leads	OCP OTP OVP SCP	305 VAC	90 VAC	IP67	1	95 %	Constant Current Voltage	480 W	CB CCC CE cURus ENEC	3750 V	48 V	24 V	4.92 in	43.8 mm	1.72 in	9.26 in	235.2 mm	125 mm	10 A	AC DC Converter		Analog PWM
