3544
ActiveKitronik Ltd.

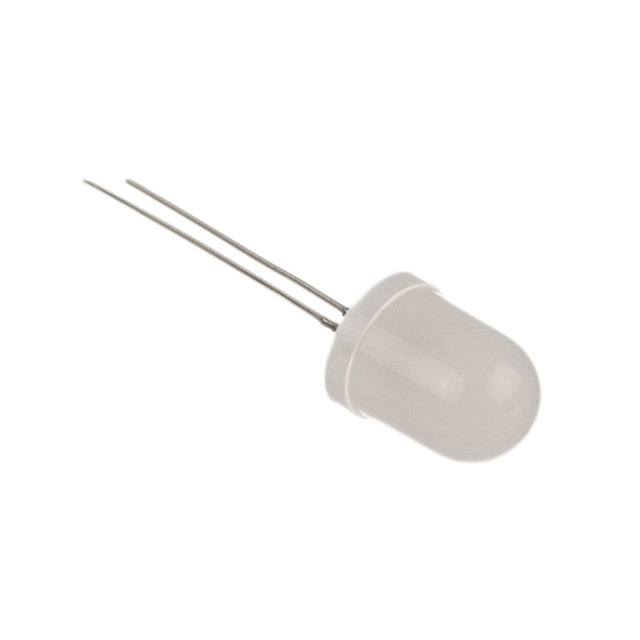

LED RGB DIFFUSED 10MM T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3544
ActiveKitronik Ltd.
LED RGB DIFFUSED 10MM T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3544 |
|---|---|
| Color | Red, Green, Blue |
| Current - Test | 25 mA |
| Features | Cycling |
| Lens Size | T-3 1/8 |
| Lens Size | 10 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 750 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | 10 mm |
| Voltage - Forward (Vf) (Typ) | 3.85 V |
- Series
| Part | Contents | Function | Supplier Device Package | Voltage - Forward (Vf) (Typ) | Lens Transparency | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Wavelength - Dominant | Features | Color | Height (Max) [Max] | Viewing Angle | Package / Case | Current - Test | Lens Size | Lens Size | Lens Color | Mounting Type | Lens Style | Millicandela Rating | Configuration | Interconnect System | Suggested Programming Environment |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kitronik Ltd. | Board(s) | LED Board | ||||||||||||||||||||||
Kitronik Ltd. | 5 mm | 4.5 V | Diffused | 500 mcd | 330 mcd | 750 mcd | 470 nm 525 nm 625 nm | Cycling | Blue Green Red | 9 mm | 30 ° | Radial | 25 mA | T-1 3/4 | 5 mm | White | Through Hole | Round with Domed Top | ||||||
Kitronik Ltd. | 10 mm | 3.85 V | Diffused | Cycling | Blue Green Red | Radial | 25 mA | T-3 1/8 | 10 mm | Through Hole | Round with Domed Top | 750 mcd | ||||||||||||
Kitronik Ltd. | Hardware Servo(s) | Robot Components | Raspberry Pi Pico | Python | ||||||||||||||||||||
Kitronik Ltd. | Board(s) | LED Board | ||||||||||||||||||||||
Kitronik Ltd. | Board(s) | LED Board |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.79 | |
| Bulk | 1 | $ 0.23 | ||
| 25 | $ 0.21 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
Description
General part information
- Series
Red, Green, Blue (RGB) LED Indication - Discrete 3.85V Radial
