3527

Active

Kitronik Ltd.

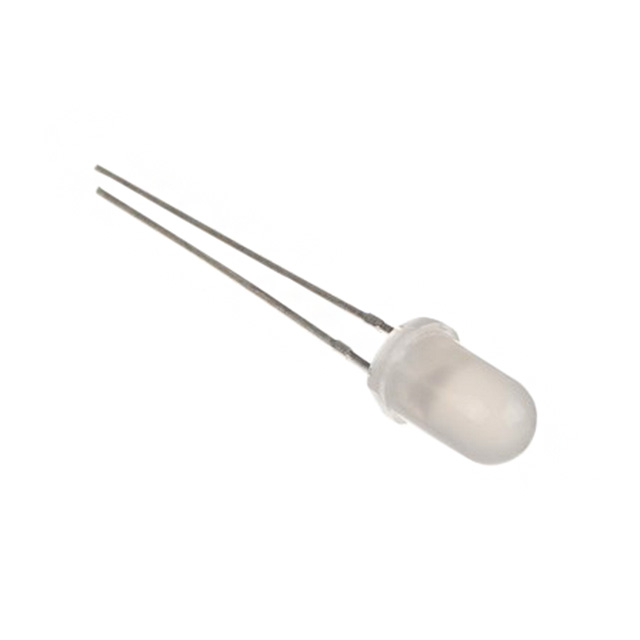

LED RGB DIFFUSED 5MM T/H

Search across all available documentation for this part.

Active

Kitronik Ltd.

LED RGB DIFFUSED 5MM T/H

Technical Specifications

Parameters and characteristics for this part

Part	Contents	Function	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Lens Transparency	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant	Features	Color	Height (Max) [Max]	Viewing Angle	Package / Case	Current - Test	Lens Size	Lens Size	Lens Color	Mounting Type	Lens Style	Millicandela Rating	Configuration	Interconnect System	Suggested Programming Environment
Kitronik Ltd. 3561	Board(s)	LED Board
Kitronik Ltd. 3527			5 mm	4.5 V	Diffused	500 mcd	330 mcd	750 mcd	470 nm 525 nm 625 nm	Cycling	Blue Green Red	9 mm	30 °	Radial	25 mA	T-1 3/4	5 mm	White	Through Hole	Round with Domed Top
Kitronik Ltd. 3544			10 mm	3.85 V	Diffused					Cycling	Blue Green Red			Radial	25 mA	T-3 1/8	10 mm		Through Hole	Round with Domed Top	750 mcd
Kitronik Ltd. 5344	Hardware Servo(s)																					Robot Components	Raspberry Pi Pico	Python
Kitronik Ltd. 3562	Board(s)	LED Board
Kitronik Ltd. 35157	Board(s)	LED Board

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 625nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 4.5V Radial

Technical documentation and resources

No documents available
