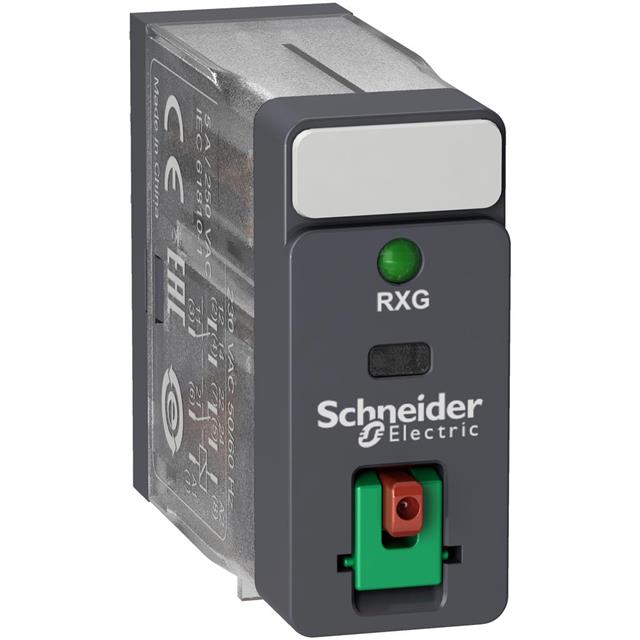

RXG22E7
ActiveSQUARE D BY SCHNEIDER ELECTRIC
POWER RELAY, DPDT, 48 VAC, 5 A, ZELIO RXG SERIES, SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
RXG22E7
ActiveSQUARE D BY SCHNEIDER ELECTRIC
POWER RELAY, DPDT, 48 VAC, 5 A, ZELIO RXG SERIES, SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RXG22E7 |
|---|---|
| Approval Agency | UL, CE, DNV-GL, EAC, CSA |
| Coil Type | Non Latching |
| Coil Voltage | 48 VAC/DC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Contact Rating (Current) | 5 A |
| Features | Test Button, Lighted Indicator |
| Load - Max Switching | 1250 VA, 150 W |
| Mounting Type | Socketable |
| Must Operate Voltage | 38.4 VAC |
| Must Release Voltage | 14.4 VAC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | Plug In |
RXG22 Series
| Part | Approval Agency | Coil Type | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current | Load - Max Switching | Coil Voltage | Must Operate Voltage | Termination Style | Release Time | Contact Material | Coil Insulation | Must Release Voltage | Features | Relay Type | Switching Voltage [Max] | Contact Rating (Current) | Contact Form | Mounting Type | Operate Time | Coil Resistance | Switching Voltage | Load - Max Switching [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA DNV-GL EAC UL | Non Latching | -40 °C | 70 °C | 10.5 mA | 150 W 1250 VA | 220 VAC/DC | 176 VAC | Plug In | 20 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | Class F | 66 VAC | Lighted Indicator Test Button | General Purpose | 30 VDC 250 VAC | 5 A | DPDT (2 Form C) | Socketable | 20 ms | 21 kOhms | ||
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA DNV-GL EAC UL | Non Latching | -40 °C | 70 °C | 150 W 1250 VA | 12 VDC | Plug In | 20 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 1.2 VDC | Lighted Indicator Test Button | General Purpose | 30 VDC 250 VAC | 5 A | DPDT (2 Form C) | Socketable | 20 ms | ||||||
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA DNV-GL EAC UL | Non Latching | -40 °C | 70 °C | 92.3 mA | 150 W 1250 VA | 24 VAC | 19.2 VAC | Plug In | 20 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | Class F | 7.2 VAC | Lighted Indicator Test Button | General Purpose | 30 VDC 250 VAC | 5 A | DPDT (2 Form C) | Socketable | 20 ms | 260 Ohms | ||
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA DNV-GL EAC UL | Non Latching | -40 °C | 70 °C | 10.9 mA | 150 W 1250 VA | 48 VDC | Plug In | 20 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | Class F | 4.8 VDC | Lighted Indicator Test Button | General Purpose | 30 VDC 250 VAC | 5 A | DPDT (2 Form C) | Chassis Mount | 20 ms | 4.4 kOhms | |||
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA DNV-GL EAC UL | Non Latching | -40 °C | 70 °C | 150 W 1250 VA | 110 VDC | Plug In | 20 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | Class F | 11 VDC | Lighted Indicator Test Button | General Purpose | 30 VDC 250 VAC | 5 A | DPDT (2 Form C) | Socketable | 20 ms | 22.8 kOhms | ||||
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA DNV-GL EAC UL | Non Latching | -40 °C | 70 °C | 150 W 1250 VA | 24 VDC | Plug In | 20 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 2.4 VDC | Lighted Indicator Test Button | General Purpose | 30 VDC 250 VAC | 5 A | DPDT (2 Form C) | Socketable | 20 ms | ||||||
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA DNV-GL EAC UL | Non Latching | -40 °C | 70 °C | 150 W 1250 VA | 48 VAC/DC | 38.4 VAC | Plug In | 20 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 14.4 VAC | Lighted Indicator Test Button | General Purpose | 30 VDC 250 VAC | 5 A | DPDT (2 Form C) | Socketable | 20 ms | |||||
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA DNV-GL EAC UL | Non Latching | -40 °C | 70 °C | 24 VDC | 19.2 VDC | Screw Terminal | 20 ms | Silver Tin Oxide Indium Oxide (AgSnOInO) | 2.4 VDC | Lighted Indicator Test Button | General Purpose | 5 A | DPDT (2 Form C) | DIN Rail | 20 ms | 250 VAC | 1250 VA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RXG22 Series
General Purpose Relay DPDT (2 Form C) 48VAC Coil Socketable
