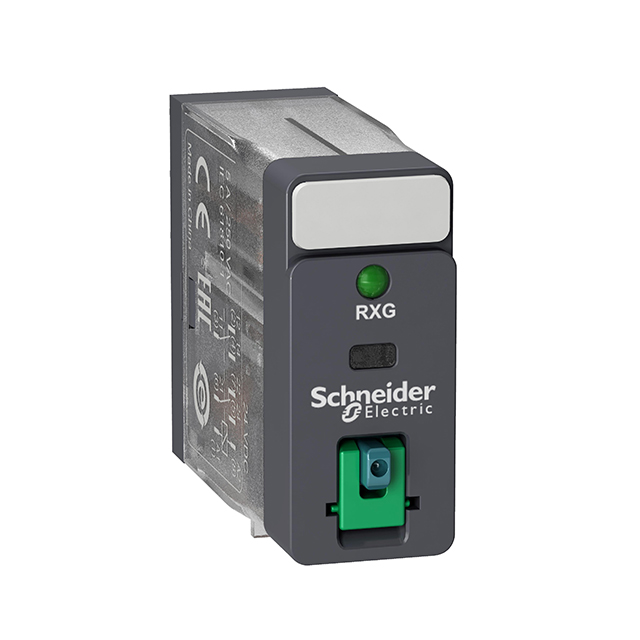

RXG22FD

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY2CO 5A@250VAC 110VDC COIL L

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RXG22FD

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY2CO 5A@250VAC 110VDC COIL L

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RXG22FD

Approval Agency	UL, CE, DNV-GL, EAC, CSA
Coil Insulation	Class F
Coil Resistance	22.8 kOhms
Coil Type	Non Latching
Coil Voltage	110 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	5 A
Features	Test Button, Lighted Indicator
Load - Max Switching	1250 VA, 150 W
Mounting Type	Socketable
Must Release Voltage	11 VDC
Operate Time	20 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Plug In

RXG22 Series

Part	Approval Agency	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Load - Max Switching	Coil Voltage	Must Operate Voltage	Termination Style	Release Time	Contact Material	Coil Insulation	Must Release Voltage	Features	Relay Type	Switching Voltage [Max]	Contact Rating (Current)	Contact Form	Mounting Type	Operate Time	Coil Resistance	Switching Voltage	Load - Max Switching [Max]
SQUARE D BY SCHNEIDER ELECTRIC RXG22M7	CE CSA DNV-GL EAC UL	Non Latching	-40 °C	70 °C	10.5 mA	150 W 1250 VA	220 VAC/DC	176 VAC	Plug In	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	Class F	66 VAC	Lighted Indicator Test Button	General Purpose	30 VDC 250 VAC	5 A	DPDT (2 Form C)	Socketable	20 ms	21 kOhms
SQUARE D BY SCHNEIDER ELECTRIC RXG22JD	CE CSA DNV-GL EAC UL	Non Latching	-40 °C	70 °C		150 W 1250 VA	12 VDC		Plug In	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)		1.2 VDC	Lighted Indicator Test Button	General Purpose	30 VDC 250 VAC	5 A	DPDT (2 Form C)	Socketable	20 ms
SQUARE D BY SCHNEIDER ELECTRIC RXG22B7	CE CSA DNV-GL EAC UL	Non Latching	-40 °C	70 °C	92.3 mA	150 W 1250 VA	24 VAC	19.2 VAC	Plug In	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	Class F	7.2 VAC	Lighted Indicator Test Button	General Purpose	30 VDC 250 VAC	5 A	DPDT (2 Form C)	Socketable	20 ms	260 Ohms
SQUARE D BY SCHNEIDER ELECTRIC RXG22ED	CE CSA DNV-GL EAC UL	Non Latching	-40 °C	70 °C	10.9 mA	150 W 1250 VA	48 VDC		Plug In	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	Class F	4.8 VDC	Lighted Indicator Test Button	General Purpose	30 VDC 250 VAC	5 A	DPDT (2 Form C)	Chassis Mount	20 ms	4.4 kOhms
SQUARE D BY SCHNEIDER ELECTRIC RXG22FD	CE CSA DNV-GL EAC UL	Non Latching	-40 °C	70 °C		150 W 1250 VA	110 VDC		Plug In	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	Class F	11 VDC	Lighted Indicator Test Button	General Purpose	30 VDC 250 VAC	5 A	DPDT (2 Form C)	Socketable	20 ms	22.8 kOhms
SQUARE D BY SCHNEIDER ELECTRIC RXG22BD	CE CSA DNV-GL EAC UL	Non Latching	-40 °C	70 °C		150 W 1250 VA	24 VDC		Plug In	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)		2.4 VDC	Lighted Indicator Test Button	General Purpose	30 VDC 250 VAC	5 A	DPDT (2 Form C)	Socketable	20 ms
SQUARE D BY SCHNEIDER ELECTRIC RXG22E7	CE CSA DNV-GL EAC UL	Non Latching	-40 °C	70 °C		150 W 1250 VA	48 VAC/DC	38.4 VAC	Plug In	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)		14.4 VAC	Lighted Indicator Test Button	General Purpose	30 VDC 250 VAC	5 A	DPDT (2 Form C)	Socketable	20 ms
SQUARE D BY SCHNEIDER ELECTRIC RXG22BDPV	CE CSA DNV-GL EAC UL	Non Latching	-40 °C	70 °C			24 VDC	19.2 VDC	Screw Terminal	20 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)		2.4 VDC	Lighted Indicator Test Button	General Purpose		5 A	DPDT (2 Form C)	DIN Rail	20 ms		250 VAC	1250 VA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 18.79

Description

General part information

RXG22 Series

General Purpose Relay DPDT (2 Form C) 110VDC Coil Socketable
