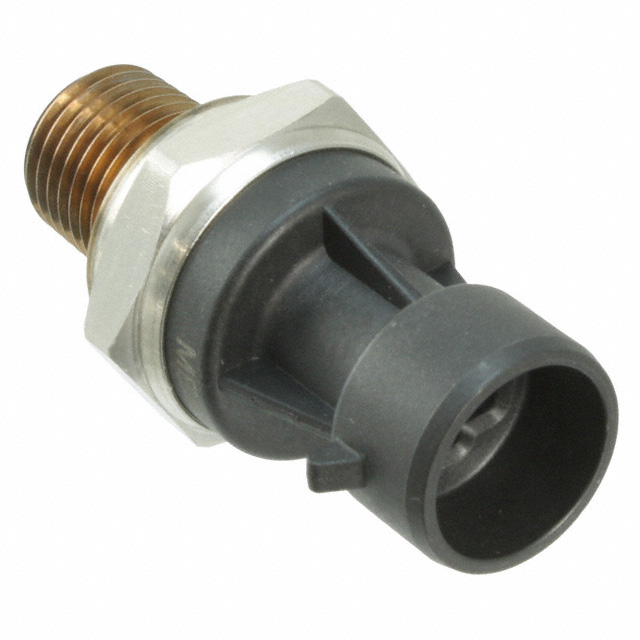

U7139-150PG-5W0000
ActiveTE Connectivity Measurement Specialties
SENSOR 150PSI 1/4NPT W/CONN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
U7139-150PG-5W0000
ActiveTE Connectivity Measurement Specialties
SENSOR 150PSI 1/4NPT W/CONN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | U7139-150PG-5W0000 |
|---|---|
| Accuracy | 0.25 % |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 2068.43 kPa |
| Maximum Pressure [Max] | 300 PSI |
| Operating Pressure | 1034.21 kPa |
| Operating Pressure | 150 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 4.5 V |
| Output [Min] | 0.5 V |
| Output Type | Analog Voltage |
| Package / Case | Cylinder |
| Port Size [custom] | NPT |
| Port Size [custom] | Male |
| Port Size [x] | 0.25 " |
| Port Size [x] | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Vented Gauge |
| Termination Style | Connector |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
U7139 Series
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Port Style | Features | Output [Min] | Output [Max] | Port Size [custom] | Port Size [x] | Port Size [x] | Port Size [custom] | Output Type | Package / Case | Applications | Accuracy | Operating Temperature [Max] | Operating Temperature [Min] | Maximum Pressure [Max] | Maximum Pressure [Max] | Operating Pressure | Operating Pressure | Termination Style | Port Size | Port Size | Maximum Pressure | Maximum Pressure | Pressure Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Measurement Specialties | 4.75 V | 5.25 V | Threaded | Temperature Compensated | 0.5 V | 4.5 V | NPT | 0.25 " | 6.35 mm | Male | Analog Voltage | Cylinder | Industrial Automation | 0.25 % | 125 °C | -40 °C | 90 PSI | 620.53 kPa | 206.84 kPa | 30 PSI | Connector | |||||
TE Connectivity Measurement Specialties | 4.75 V | 5.25 V | Threaded | Temperature Compensated | 0.5 V | 4.5 V | Analog Voltage | Cylinder | Industrial Automation | 0.25 % | 125 °C | -40 °C | 2 bar | 29.01 PSI | Connector | BSPP Male | 6.35 mm | 87.02 PSI | 600 kPa | |||||||
TE Connectivity Measurement Specialties | 4.75 V | 5.25 V | Threaded | Temperature Compensated | 0.5 V | 4.5 V | Analog Voltage | Cylinder | Industrial Automation | 0.25 % | 125 °C | -40 °C | 10 bar | 145.04 PSI | Connector | BSPP Male | 6.35 mm | 435.11 PSI | 3000 kPa | |||||||
TE Connectivity Measurement Specialties | 4.75 V | 5.25 V | Threaded | Temperature Compensated | 0.5 V | 4.5 V | NPT | 0.25 " | 6.35 mm | Male | Analog Voltage | Cylinder | 0.25 % | 125 °C | -40 °C | 300 PSI | 2068.43 kPa | 1034.21 kPa | 150 PSI | Connector | Vented Gauge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 20 | $ 319.95 | |
Description
General part information
U7139 Series
Pressure Sensor 150PSI (1034.21kPa) Vented Gauge Male - 1/4" (6.35mm) NPT 0.5 V ~ 4.5 V Cylinder
